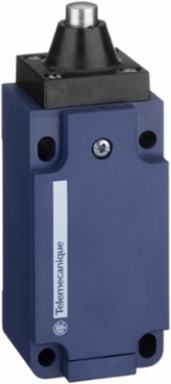

Telemecanique Sensors XCKS101H29 Limit switch, Limit switches XC Standard, XCKS, metal end plunger, 1NC+1 NO, snap action, M20
Telemecanique Sensors XCKS101H29 Limit switch, Limit switches XC Standard, XCKS, metal end plunger, 1NC+1 NO, snap action, M20
- MPN: XCKS101H29
- PPN: TES-XCKS101H29
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$144.77/ EA
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO, form Zb, snap action contacts. It provides switch actuation of an end. The limit switch has a spring return metal plunger and supports the vertical approach in 1 direction. The movement of operating head is linear. It is a limit switch with a conventional enclosed thermal current of 10A and rated operating current of 3A at 240V AC and 0.27A at 250V DC. It is furnished with screw clamp terminals for electrical connection. It is an IP66/IP67 and IK05 rated product. This plunger head limit switch has a fixed body, made of plastic. Its dimensions are 40mm (width) x 37mm (depth) x 104mm (height). It weighs 0.125kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. This product is certified by CCC, CSA and UL. It meets IEC 60204-1, UL 508, EN 60947-5-1, EN 60204-1, CSA C22.2 No 14, CENELEC EN 50041 and IEC 60947-5-1 standards. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Specifications
Environment
- Product Certifications
- CCC || UL || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 40 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP67 IEC 60529 || IP66 IEC 60529
- Overvoltage Category
- class II IEC 61140 || class II NF C 20-030
- Protective Treatment
- TC
Ik Degree Of ProtectionIK05 EN 50102
StandardsIEC 60947-5-1 || EN 60204-1 || CSA C22.2 No 14 || CENELEC EN 50041 || UL 508 || EN 60947-5-1 || IEC 60204-1
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 61140 || class II NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1307066
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1307066EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 104-104 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
- Net Weight
- 0.125 kg
- Switch Actuation
- on end
- Electrical Durability
- 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Mechanical Durability
- 25000000 cycles
- Minimum Force For Tripping
- 15 N
- Width
- 40 mm
- [Ithe] Conventional Enclosed Thermal Current
- 10 A AC
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Terminals Description Iso N°1(13-14)NO || (21-22)NC
Minimum Actuation Speed0.01 m/min
Number Of Steps1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Opening Minimum Force30 N
Contacts Insulation FormZb
Maximum Actuation Speed0.5 m/s
Contact Code DesignationA300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Depth37 mm
Repeat Accuracy0.05 mm on the tripping points with 1 million operating cycles
Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- form B CENELEC EN 50041
- Product Or Component Type
- limit switch
- Material
- plastic
- Type Of Approach
- vertical approach, 1 direction
- Contacts Type And Composition
- 1 NC + 1 NO
- Contact Operation
- snap action
- Device Short Name
- XCKS
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return plunger metal
Cable Entry1 entry tapped for M20 x 1.5 cable gland 7-13 mm
Head Materialplastic
Head Typeplunger head
Series Namestandard format
Body Typefixed
Body Materialplastic
Number Of Poles2
