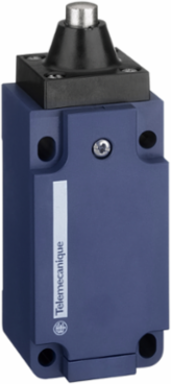

Telemecanique Sensors XCKS501 Limit switch, Limit switches XC Standard, XCKS, metal end plunger, 1NC+1 NO, slow break, Pg13
- MPN: XCKS501
- PPN: TES-XCKS501
CAD
$144.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCKS, metal end plunger, 1NC+1 NO, slow break, Pg13
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- form B CENELEC EN 50041
- Product Or Component Type
- limit switch
- Material
- plastic
- Type Of Approach
- vertical approach, 1 direction
- Contacts Type And Composition
- 1 NC + 1 NO
- Contact Operation
- slow-break, break before make
- Device Short Name
- XCKS
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return plunger metal
Cable Entry1 entry tapped for Pg 13.5 cable gland 9-12 mm
Head Materialplastic
Head Typeplunger head
Series Namestandard format
Body Typefixed
Body Materialplastic
Number Of Poles2
Complementary
- Height
- 104-104 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
- Net Weight
- 0.125 kg
- Switch Actuation
- on end
- Electrical Durability
- 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Mechanical Durability
- 25000000 cycles
- Minimum Force For Tripping
- 15 N
- Width
- 40 mm
- [Ithe] Conventional Enclosed Thermal Current
- 10 A AC
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Minimum Actuation Speed6 m/min
Number Of Steps1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Opening Minimum Force30 N
Contacts Insulation FormZb
Maximum Actuation Speed0.5 m/s
Contact Code DesignationA300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Depth37 mm
Repeat Accuracy0.05 mm on the tripping points with 1 million operating cycles
Environment
- Product Certifications
- CSA || CCC || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP67 IEC 60529 || IP66 IEC 60529
- Overvoltage Category
- class II IEC 61140 || class II NF C 20-030
- Protective Treatment
- TC
Ik Degree Of ProtectionIK05 EN 50102
StandardsIEC 60947-5-1 || UL 508 || CENELEC EN 50041 || EN 60204-1 || CSA C22.2 No 14 || EN 60947-5-1 || IEC 60204-1
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 61140 || class II NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1307066
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1307066EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
