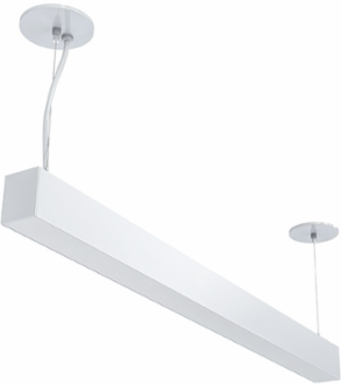

RAB 083146 Architectural Linear LED LNUD96-LED80 80W 120-277V Variable Temp White Finish Dimmable and Wall Mount
- MPN: 083146
- UPC: 061184831460
- PPN: RAB-083146
CAD
$821.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The LND/LNUD-LED Series are linear direct/indirect architectural lighting fixtures that create a sleek, modern look for commercial spaces. These fixtures are versatile with features such as colour selection, multiple mounting options and connector accessories which facilitate lighting set ups in different shapes and configurations.
Features
- Sleek linear fixtures for direct/indirect lighting.
- Fixtures can be connected in straight runs or in different configurations using connector accessories. Examples include Octagon, Square, Rectangle, Cross, T and Y shape.
- The fixtures can be connected in the linear configuration through the bracket by simply removing the end caps and connecting the fixtures together
- The direct lighting from the fixtures have a beam angle distribution of 90 degrees.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 3.7 Inches
- Lumens
- 10,491
- Efficacy
- 121
- THD
- 0.15
- CRI
- 84
- LED life
- 100,000 Hrs
Width95.5 Inches
Depth3.7 Inches
Watts80
Operating Temperature-30C to +40C
PF0.9
Surge Protection2.5 kV
MaterialsExtruded Aluminum
