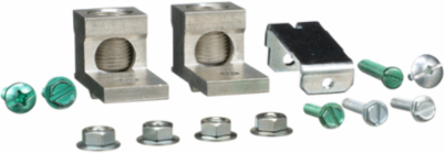

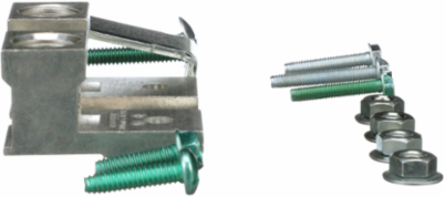

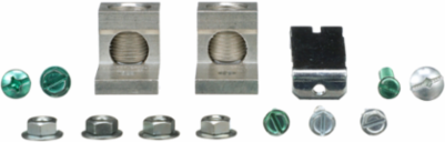

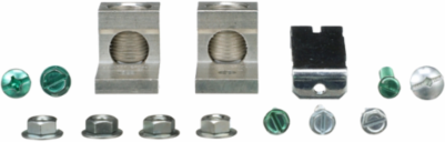

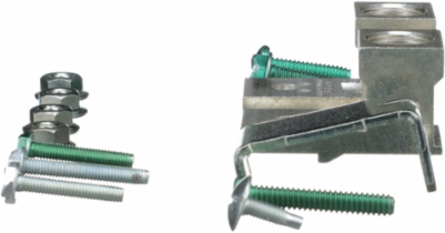

Square D QOL225 LOADCENTRE QO MAIN LUG KIT 225A
Square D QOL225 LOADCENTRE QO MAIN LUG KIT 225A
- MPN: QOL225
- UPC: 785901747970
- PPN: SCH-QOL225
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$193.11/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. There is a full line of accessories available for these circuit breakers. This mains lugs kit is for field installable in convertible main circuit breaker and main lugs load centers. Kit can be used for load centers rated from 150 to 225 A. The lugs will accept 6 AWG to 300 kcmil copper or aluminum wire. Lug is UL listed and CSA certified.
Specifications
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212001
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
Complementary
- Tightening Torque
- 8.5 N.m
- Awg Gauge
- AWG 4...AWG 2/0 aluminum || AWG 4...AWG 2/0 copper
[In] Rated Current255 A
Network Number Of Phases1 phase
Specifications
- Range Of Product
- QO
Product Or Component Typelug kit
