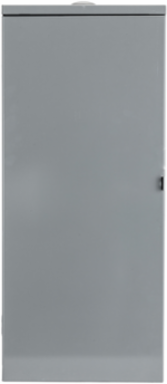

Square D CQO140M200PRB QO Loadcentre 1 Phase 200A 40 Spaces NEMA 3R Weatherproof
- MPN: CQO140M200PRB
- UPC: 785901971924
- PPN: SCH-CQO140M200PRB
CAD
$972.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase loadcentre has 40 spaces and 80 circuits. This Dual rated system provides 200A main breaker in a NEMA 3R enclosure. It also includes plug on neutral, combination cover, and is CSA rated.
Features
- This heavy-duty 200 Amp main breaker electrical panel offers 40 spaces expandable up to 80 circuits using tandem breakers, giving you massive infrastructure overhead. It easily manages the extensive power demands of modern residential builds, multi-amp EV charging stations, heat pumps, and home workshops without overloading the main feed.
- Engineered inside a rugged NEMA 3R weatherproof enclosure constructed from welded galvannealed steel with a baked enamel finish, this outdoor load center blocks out rain, sleet, and ice accumulation. The secure rainproof design eliminates the need for complex indoor space allocations while protecting internal electrical components from heavy environmental corrosion.
- Fully CSA certified for Canadian residential and commercial distribution systems, this high-performance panel boasts a robust 22 kA short-circuit current interrupting rating (AIR). This high threshold effectively contains and mitigates massive fault currents, ensuring your installation remains fully compliant with the latest CEC regulations while protecting downstream electronics and property from severe electrical surges.
- This premium load center features a tin-plated copper busbar that ensures maximum electrical conductivity and superior thermal performance compared to standard aluminum interiors. This commercial-grade material resists oxidation and overheating, reducing voltage drops and dramatically extending the lifetime of your panelboard components.
- The innovative Plug-on Neutral architecture eliminates the need for time-consuming pigtail connections on CAFI (Combination Arc Fault Circuit Interrupter) and dual-function breakers. By snapping modern breakers directly onto the neutral bar, you reduce gutter clutter, optimize airflow, and slash your overall installation time by up to 30%.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 95 mm |
|---|
Complementary Attributes
| Line Rated Current | 200 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 3.833325, 4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0089478794, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.087341 |
| Local Publishable Date | 2026-07-14 |
| Stocking Flag | N |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Cover Type | surface cover |
| Electrical Connection | lugs |
| Energy Efficiency Optimized | False |
| Material | tin plated copper: busbar |
| Number Of Circuits | 80 |
| Number Of Tandem Circuit Breakers | 40 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |

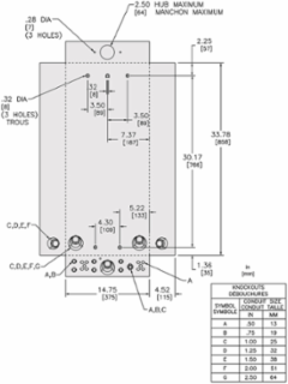

| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Lexington |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Recyclability Potential In % | 88 |
| Width Nominal | 362 mm |
| [Ue] Rated Operational Voltage | 240 V AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 7.4172 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1.1052 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1.1052 |
| Water Pollution (M3) Operational Energy Use [B6] | 4.3059 |
| Persona Type Names | End User, Contractor |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.1889727941 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 82 kg CO2 eq., 81.8314411765 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Awg Gauge | 14 AWG...1/0 AWG copper12 AWG...1/0 AWG aluminium |
| Device Composition | grounding bar (ordered separately) |
| Enclosure Material | welded galvannealed steel |
| Load Center Type | PoN Convertible Mains (breaker) |
| Mounting Mode | vertical |
| Number Of Spaces | 40 |
| Phase | 1 phase 3 wires |
| Product Or Component Type | Load Center |
| Returnability | Yes |
| Surface Finish | baked enamel Gray |
| Total Lifecycle Carbon Footprint | 87 kg CO2 eq. |
| Pep Code | ENVPEP2212001EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Height Nominal | 858 mm |
| Certificate Agency | CSA |
| Short-circuit Current | 22 kA |
| Package Weight(Lbs) | 11.34 kg |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1.0634 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1.1758 |
| Water Pollution (M3) Manufacturing [A1-a3] | 3900.15 |
| Customs Code | 8537109150 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001EN |
| Nema Degree Of Protection | NEMA 3R weatherproof enclosure |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2212001EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Operation | -5 °C, -5 °C, 40 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 86.95002785 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Phase | 1 phase 3 wires |
|---|---|
| Range Of Product | QO |
| Product Or Component Type | Load Center |
|---|
ETIM
| ETIM 8 | EC000214 |
|---|
| ETIM 9 | EC000214 |
|---|
