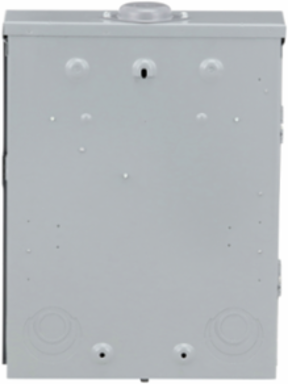

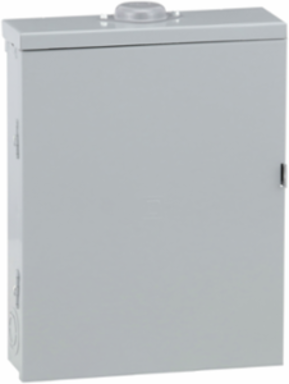

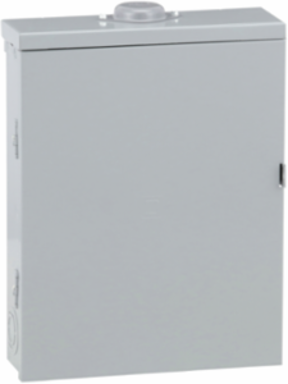

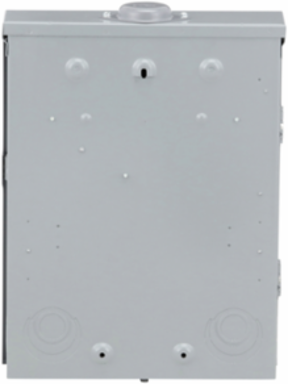

Square D QO312L125GRB Load Centre 240V 125A 3-Phase 12 Circuits Weatherproof NEMA 3R
- MPN: QO312L125GRB
- UPC: 785901295044
- PPN: SCH-QO312L125GRB
CAD
$869.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 12 spaces and 12 circuits. This system provides 125A fixed main lugs in a NEMA 3R enclosure. It also includes a ground bar, and is UL rated.
Documentation & Downloads
Specifications
Additional
- Voltage
- 208Y/120 V AC, 240/120 V delta AC, 240 V delta AC
- Phases
- 3 phases
- Max Short Circuit Current Rating
- 65 kA
- Main Type
- Fixed mains (lugs)
- Enclosure Rating
- NEMA 3R outdoor
- Ground Bar
- Included (not installed)
- Surface Finish
- Baked enamel grey
- Wiring Configuration
- 3-wire, 4-wire
- Width
- 375 mm (14.76 in)
- Tightening Torque
- Main lugs 50 lb.in, AWG 6 to AWG 2/0 aluminum/copper
- Country of Origin
- US
Amperage125 A
Number of Circuits12
Number of Spaces12
Enclosure TypeWeatherproof enclosure
Electrical ConnectionLugs
MaterialTin plated copper busbar, welded galvannealed steel enclosure
Wire SizeAWG 6 to AWG 2/0 aluminum/copper
Height481 mm (18.94 in)
Ambient Air Temperature for Operation-5 °C to 40 °C (23 °F to 104 °F)
ComplianceUL listed, RoHS compliant, Prop 65 compliant (Free of SVHC)
Warranty18 months
