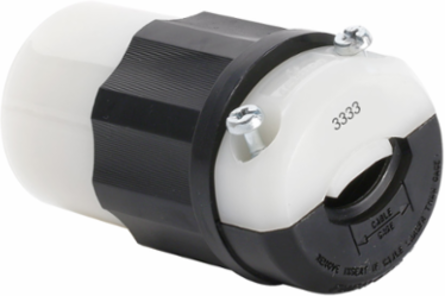

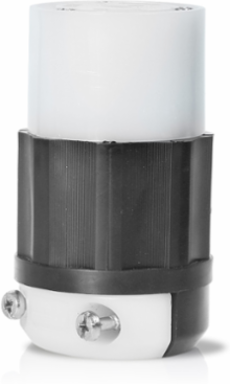

Leviton 3333 Locking Connector, 30 Amp, 125V/250V, Industrial Grade, Black & White
Leviton 3333 Locking Connector, 30 Amp, 125V/250V, Industrial Grade, Black & White
- MPN: 3333
- UPC: 078477816844
- PPN: LEV-3333
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$132.48/ EA
Description
30 Amp, 125V/250V, Non-NEMA, 3P, 3W, Locking Connector, Industrial Grade, Non-Grounding - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13393
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Blades/Contacts
- Solid Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Wire Module
- Nylon
Back CoverThermoplastic
Body MaterialImpact Modified Nylon
ColorBlack-White
Terminal ScrewsBrass
Mechanical Specifications
- Amperage
- 30 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Grounding
- Non-Grounding
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
- Torque Range
- 10-14 in-lbs
- Wire
- 3
Cord Range.385 - .860
Dielectric VoltageWithstands 2000V per UL498
Pole3
Temperature RiseMax 30C at 250 cycles OL at 200 pct rated current
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Voltage125/250 VAC
Wire Gauge16-8 AWG
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Black and White
Device TypeLocking Connector
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated HB or better UL94
