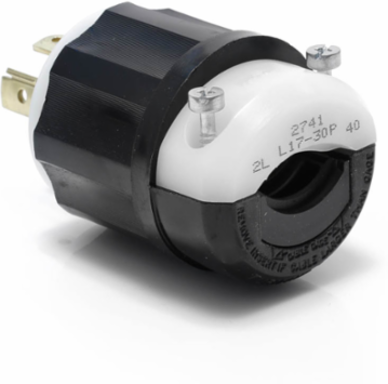

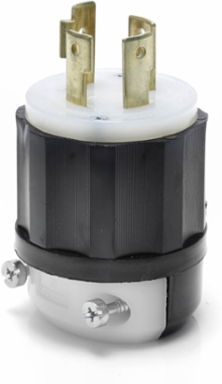

Leviton 2741 30 Amp Locking Plug, 600 Volt, NEMA L17-30P, 3-Phase, Nylon Construction
- MPN: 2741
- UPC: 078477808399
- PPN: LEV-2741
CAD
$41.87
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

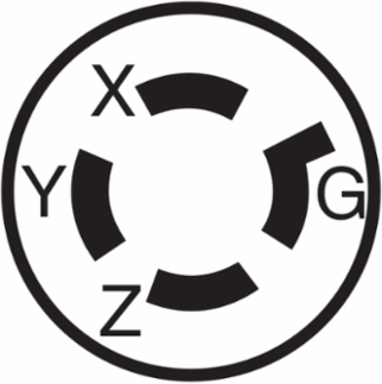

30 Amp, 600 Volt 3-Phase, NEMA L17-30P, 3P, 4W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Phase
- 3-Phase
- Wire
- 4
- Wire Gauge
- 14-8 AWG
- Temperature Rise
- Max 30B0C after 250 cycles OL at 200% rated current
- Current Interrupting
- Certified for current interrupting at full rated current
- Material
- Impact Modified Nylon body, Nylon clamp insert and cord clamp, Solid Brass contacts, Brass terminal screws, Steel zinc plated assembly screws
- Compliance
- UL498 File E13393, CSA C22.2 No. 42 File LR-406, ANSI C-73, NOM 057, UL Fed Spec WC-596 File E13393
- Color
- Black-White
- Country of Origin
- Mexico
Voltage600 VAC
Pole3
Torque Range10-14 in-lbs
Temperature Range-40B0C to 60B0C
Dielectric VoltageWithstands 2000V per UL498
Cord Range.595 - 1.150 in
Flammability RatingHB or better UL94
GroundingGrounding
EnvironmentDry
BrandBlack and White
