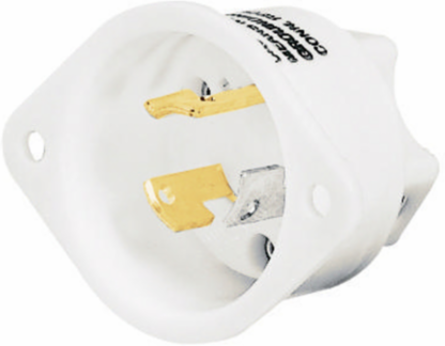

Bryant 70615MB Industrial Flanged Inlet Locking Device, 15A 250V, L6-15P, 2-Pole 3-Wire Grounding
Bryant 70615MB Industrial Flanged Inlet Locking Device, 15A 250V, L6-15P, 2-Pole 3-Wire Grounding
- MPN: 70615MB
- UPC: 781786704008
- PPN: HBL-70615MB
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$66.54/ EA
Description
Locking Devices, Industrial, Flanged Inlet, 15A 250V, 2-Pole 3-Wire Grounding, L6-15P, Screw Terminal, White
Features
- Flanged Inlet
- 15A 250V
- 2-Pole 3-Wire Grounding
- L6-15P
- Screw Terminal
- Standard Product
Specifications
Specifications
- Country of Origin
- United States
- Height
- 1.68 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 3000V Minimum in
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Size
- 1.84 in x 2.50 in x 1.68 in
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Voltage Rating
- 250 V
- Voltage Rating Description
- 250V
- Connectivity
- Screw Terminals
- Nema Rating
- L6-15P
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A172
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.45 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Dimensions1.84 in x 2.50 in x 1.68 in
Length1.84 in
Amperage Rating15 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL6-15P
Number of Wires3-Wire
Special FeaturesStandard Product
TypeFlanged Inlet
Wire Size#14 AWG to #10 AWG
Width2.50 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleEquipment Base
Description - InvoiceLKG FLG-INLT, 15A 250V, L6-15P, WH
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialComposite
BOX SIZE5.300x14.600x6.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786704008
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
