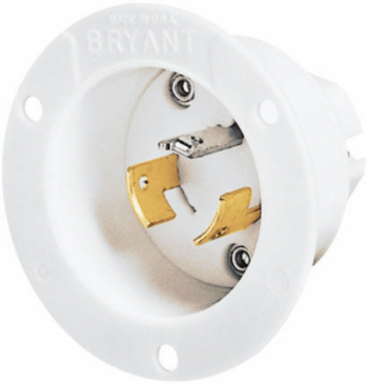

Bryant 7327 Industrial Flanged Inlet Locking Device, 20A 250V, 3-Pole, Screw Terminal, 3.06 Inch
Bryant 7327 Industrial Flanged Inlet Locking Device, 20A 250V, 3-Pole, Screw Terminal, 3.06 Inch
- MPN: 7327
- UPC: 781786628151
- PPN: HBL-7327
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$78.08/ EA
Description
Locking Devices, Industrial, Flanged Inlet, 20A 125/250V AC, 3-Pole 3-Wire Non-Grounding, Non-NEMA, Screw Terminal, White
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws
- Mounting screws included
- Standard Product
Specifications
Specifications
- Country of Origin
- United States
- Height
- 2.27 in
- Amperage Rating
- 20 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- Non-NEMA
- Number of Wires
- 3-Wire
- Special Features
- Standard Product
- Type
- Flanged Inlet
- Wire Size
- #18 AWG to #8 AWG
- Width
- 3.06 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- Equipment Base
- Description - Invoice
- LKG FLG-INLT, 20A 250V, 2P3W, BK
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- BOX SIZE
- 4.700x9.400x4.700 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786628151
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
Dimensions3.06 in x 3.06 in x 2.27 in
Length3.06 in
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Poles3-Pole
Size3.06 in x 3.06 in x 2.27 in
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating125/250 VAC
Voltage Rating Description125/250V AC
ConnectivityScrew Terminals
Nema RatingNon-NEMA
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A173
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.7 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight4.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
Downloads
