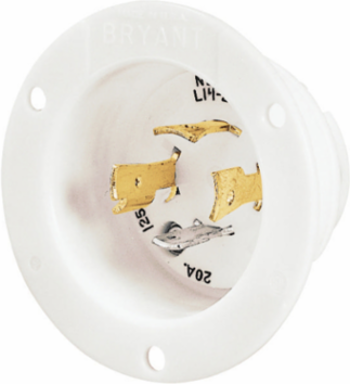

Bryant 71420MB Locking Flanged Inlet 20A 250V 3-Pole 4-Wire L14-20P White
- MPN: 71420MB
- UPC: 781786695160
- PPN: HBL-71420MB
- UNSPSC: 39121406
CAD
$99.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Flanged Inlet, 20A 125/250V AC, 3-Pole 4-Wire Grounding, L14-20P, Screw Terminal, White
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws
- Mounting screws included
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- NEMA Rating
- L14-20P
- Number of Wires
- 4-Wire
- Special Features
- Standard Product
- Color
- White
- Height
- 2.03 in
- Voltage Rating
- 125/250 VAC
- Width
- 3.06 in
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 3000V Minimum
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Nema Rating
- L14-20P
- Number Of Wires
- 4-Wire
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Wire Size
- #18 AWG to #8 AWG
- Description - Invoice
- LKG FLG-INLT, 20A 125/250V, L14-20P,WH
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- BOX SIZE
- 5.300x14.600x6.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786695160
- Each - Pack Description
- Each
Number of Poles3-Pole
Size3.06 in x 3.06 in x 2.03 in
Country of OriginUnited States
Dimensions3.06 in x 3.06 in x 2.03 in
Length3.06 in
Voltage Rating Description125/250V AC
Amperage Rating20 A
ConnectivityScrew Terminals
Display SizeStandard Sized Product
InsulationInsulated Body
Number Of Poles3-Pole
StyleEquipment Base
TypeFlanged Inlet
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.5 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
