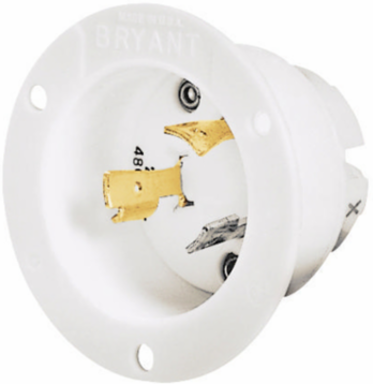

Bryant 70820MB Industrial Locking Device, Flanged Inlet, 20A 480V AC, 2-Pole, White
Bryant 70820MB Industrial Locking Device, Flanged Inlet, 20A 480V AC, 2-Pole, White
- MPN: 70820MB
- UPC: 781786690868
- PPN: HBL-70820MB
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$70.45/ EA
Description
Locking Devices, Industrial, Flanged Inlet, 20A 480V AC, 2-Pole 3-Wire Grounding, L8-20P, Screw Terminal, White
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws
- Mounting screws included
- Standard Product
Specifications
Specifications
- Country of Origin
- United States
- Height
- 2.02 in
- Amperage Rating
- 20 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L8-20P
- Number of Wires
- 3-Wire
- Special Features
- Standard Product
- Type
- Flanged Inlet
- Wire Size
- #18 AWG to #8 AWG
- Width
- 2.88 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Equipment Base
- Description - Invoice
- LKG FLG-INLT, 20A 480V, L8-20P, WH
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- BOX SIZE
- 5.300x14.600x6.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786690868
- Each - Pack Description
- Each
Dimensions2.88 in x 2.88 in x 2.02 in
Length2.88 in
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Poles2-Pole
Size2.88 in x 2.88 in x 2.02 in
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating480 VAC
Voltage Rating Description480V AC
ConnectivityScrew Terminals
Nema RatingL8-20P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
