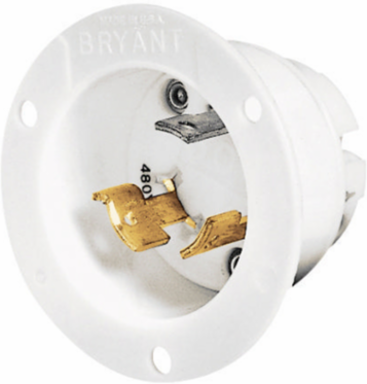

Bryant 71230MB Industrial Flanged Inlet Locking Device, 30A, 3-Pole, 3-Wire, 480V AC, White
- MPN: 71230MB
- UPC: 781786694361
- PPN: HBL-71230MB
- UNSPSC: 39121406
CAD
$106.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Flanged Inlet, 30A 3-Phase Delta 480V AC, 3-Pole 3-Wire Non-Grounding, L12-30P, Screw Terminal, White
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws
- Mounting screws included
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 2.02 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 3500V
- Insulation
- Insulated Body
- Number of Poles
- 3-Pole
- Size
- 2.88 in x 2.88 in x 2.02 in
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Voltage Rating
- 3 Phase 480 VAC
- Voltage Rating Description
- 3 Phase 480V AC
- Connectivity
- Screw Terminals
- Nema Rating
- L12-30P
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A172
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.600 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Lowest Level UOM
- Each
Dimensions2.88 in x 2.88 in x 2.02 in
Length2.88 in
Amperage Rating30 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL12-30P
Number of Wires3-Wire
Special FeaturesStandard Product
TypeFlanged Inlet
Wire Size#14 AWG to #8 AWG
Width2.88 in
Display SizeStandard Sized Product
Number Of Poles3-Pole
StyleEquipment Base
Description - InvoiceLKG FLG-INLT, 30A 3PH 480V, L12-30P,WH
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialComposite
BOX SIZE5.300x14.600x6.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786694361
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
