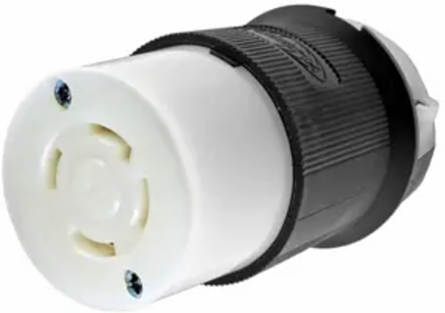

Hubbell Wiring Device-Kellems HBL2733 Twist-Lock Female Connector, 30A 3-Phase 480V AC, L16-30R, 4-Wire, Nylon
Hubbell Wiring Device-Kellems HBL2733 Twist-Lock Female Connector, 30A 3-Phase 480V AC, L16-30R, 4-Wire, Nylon
- MPN: HBL2733
- UPC: 783585039336
- PPN: HBL-HBL2733
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$155.06/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-30R, Screw Terminal, Black and White
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL2733 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Food Processing Guide
- Country of Origin
- United States
- Dimensions
- 2.33 in x 2.33 in x 3.86 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 30 A
- Color
- Noir, blanc
- Insulation
- Insulated Body
- Number of Poles
- 3-Pole
- Special Features
- Standard Product
- Type
- Connector Body
- Voltage Rating Description
- 3 Phase 480 VAC
- Width
- 2.33 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L16-30R
- Number Of Wires
- 4-Wire
- Phase
- Three Phase
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL2733CN
- Cable Range
- 0.350 - 1.150 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 15.700 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585039335
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextEducation Application Guide
General Literature Asset 3 Display TextInsulgrip® Straight Blade and Twist-Lock® Devices
Current / Amperage Rating30 A
Height3.86 in
Length2.33 in
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL16-30R
Size2.33 in x 2.33 in x 3.86 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating3 Phase 480 VAC
Weight3.05 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#16 AWG to #8 AWG
Description - InvoiceLKG CONN, 30A 3P 480V, L16-30R, B/W
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Cord Range0.350"-1.150" (9-29)
Cord Diameter0.350-1.150 in
MaterialNylon
BOX SIZE8.100x12.500x9.200 (in)
Carton - Number of Sub Packs30
Carton - SCC-14 Next Lower Level Sub Pack783585039336
Case Weight13.400 lb.
Lowest Level UOMEach
Pallet Height47.400 in
Pallet Weight1257.600 lb.
Certifications
- EU RoHS Indicator
- Yes
