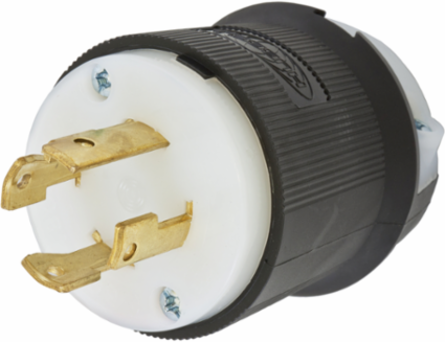

Hubbell HBL2731 Twist-Lock Male Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire, L16-30P
- MPN: HBL2731
- UPC: 783585039312
- PPN: HBL-HBL2731
- UNSPSC: 39121402
CAD
$81.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, L16-30P, Screw Terminal, Black and White
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Horsepower Rating | 10 HP |
| Number of Wires | 4-Wire |
| Operating Temperature | -40 C to 75 C |
| Wire Size Range | #16 AWG to #8 AWG |
| Weight | 0.30 lb. |
| NEMA Rating | L16-30P |
| RoHS Compliance | Yes (CM) |
| Voltage | 480 V AC, 3-Phase |
|---|---|
| Number of Poles | 3-Pole |
| Dielectric Strength | Withstands 2000 V minimum |
| Cord Diameter | 0.350-1.150 in |
| Dimensions | 2.33 in x 2.33 in x 2.75 in |
| Material | Nylon |
| Standard | Certified to CSA C22.2 No.42; Fed.Spec. W-C-596; Listed to UL 498 |
| Country of Origin | US |
