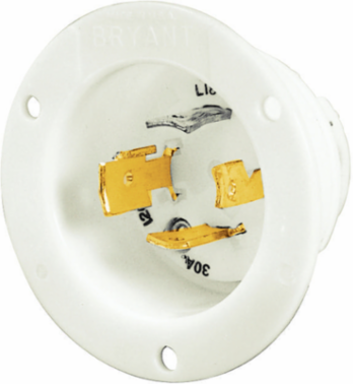

Bryant 72030MB 30A Flanged Inlet Locking Device, 4-Pole 5-Wire, 347/600V AC, White

MPN: 72030MB
UPC: 781786700567
PPN: HBL-72030MB
UNSPSC: 39121406

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$134.66/ EA

Qty:

Loading add to cart quantity...

Description

Locking Devices, Industrial, Flanged Inlet, 30A 3-Phase Wye 347/600V AC, 4-Pole 4-Wire Non-Grounding, L20-30P, Screw Terminal, White.

Features

Impact resistant thermoplastic construction
Backwired terminations for ease of installation
#10-32 Multiple drive terminal screws
Mounting screws included
Standard Product

Specifications

Country of Origin: United States

Height: 2.02 in

Standards - RoHS Compliance Status: CM

Application: Extra Heavy Duty Industrial

Dielectric Strength: Withstands 3500V

Insulation: Insulated Body

Number of Poles: 4-Pole

Size: 2.88 in x 2.88 in x 2.02 in

Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact

Voltage Rating: 3 Phase Y 347/600 VAC

Voltage Rating Description: 3 Phase Y 347/600V AC

Connectivity: Screw Terminals

Nema Rating: L20-20P

Number Of Wires: 4-Wire

Class Code: A08

Freight Class Code: 06168002

Image Actual Or Representative: A

Sub Class Code: A08A172

Current Rating: 30 A

Base Unit of Measure: EA

Carton - Gross Weight per Pack: 2.65 lb.

Carton - Pack Description: Carton

Carton - Total Units: 10 EA

Lowest Level UOM: Each

Dimensions2.88 in x 2.88 in x 2.02 in

Length2.88 in

Amperage Rating30 A

ColorWhite

Environmental ConditionsIndoor Dry Unless Protected By Additional Means

NEMA RatingL20-20P

Number of Wires4-Wire

Special FeaturesStandard Product

TypeFlanged Inlet

Wire Size#14 AWG to #8 AWG

Width2.88 in

Display SizeStandard Sized Product

Number Of Poles4-Pole

StyleEquipment Base

Description - InvoiceLKG FLG-INLT, 30A 347/600V, L20-30P,WH

Harmonization Code8536694020

MSDS FlagNo

Material - Mounting HardwareScrew Mounting

MaterialComposite

BOX SIZE5.300x14.600x6.100 (in)

Carton - Number of Sub Packs10

Carton - SCC-14 Next Lower Level Sub Pack781786700567

Each - Pack DescriptionEach

Certifications

EU RoHS Indicator: Yes

Downloads
