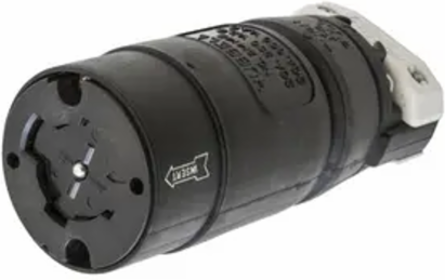

Hubbell Wiring Device-Kellems HBL21414B Hubbellock Female Connector Body, 30A 600V AC, 3-Pole 4-Wire, Nylon, 6 Inch
- MPN: HBL21414B
- UPC: 783585017297
- PPN: HBL-HBL21414B
- UNSPSC: 39121421
CAD
$228.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Hubbellock®, Industrial, Female Connector Body, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Black nylon housing, thermoplastic interior, Non-NEMA, Screw Terminal, Black and White
Features
- Spring loaded safety shutter contains arcing when mating or un-mating devices under load
- Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
- Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit
- Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 6 in x 2.44 in x 2.44 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage Withstand - 2,000V minimum;Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors;Environmental - Moisture Resistance - IP30 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 3-Pole
- Special Features
- Standard Product
- Type
- Connector Body
- Voltage Rating Description
- 250 VDC/600 VAC
- Width
- 2.44 in
- Dielectric Strength
- Withstands 2,000V minimum
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 21414B
- Cable Range
- 0.700 - 1.200 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.200 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585017296
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating20/30 A
Height2.44 in
Length6 in
Amperage Rating20/30 A
ColorNoir, blanc
InsulationInsulated Body
Size6 in x 2.44 in x 2.44 in
StandardCertified to CSA C22.2 No.42;Listed to UL 498
Voltage Rating250 VDC/600 VAC
Weight1.05 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard
Number Of Wires4-Wire
Wire Size#10 AWG to #6 AWG
Description - InvoiceH/LOCK CONN, 3P4W, 30A 600V
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A170
Cord Range0.70"-1.20" (17.78-30.5)
Cord Diameter0.700-1.200 in
MaterialNylon
BOX SIZE6.300x14.200x9.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585017297
Case Weight5.174 lb.
Lowest Level UOMEach
Pallet Height44.100 in
Pallet Weight1078.000 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- No
