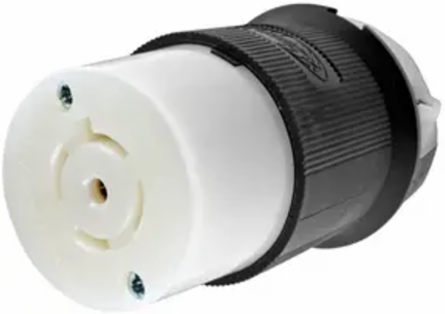

Hubbell Wiring Device-Kellems HBL2513 Locking Connector Body, 20A 4-Pole 5-Wire, 120/208V AC, Nylon
- MPN: HBL2513
- UPC: 783585038551
- PPN: HBL-HBL2513
- UNSPSC: 39121421
CAD
$122.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-20R, Screw Terminal, Black and White Nylon.
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2513 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Entertainment Product Solution Guide
- Current / Amperage Rating
- 20 A
- Height
- 3.86 in
- Length
- 2.33 in
- Amperage Rating
- 20 A
- Color
- Noir, blanc
- Insulation
- Insulated Body
- Number of Poles
- 4-Pole
- Special Features
- Standard Product
- Type
- Connector Body
- Voltage Rating Description
- 3 Phase WYE 120/208 VAC
- Width
- 2.33 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L21-20R
- Number Of Wires
- 5-Wire
- Phase
- 3 Phase WYE
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL2513CN
- Cable Range
- 0.350 - 1.150 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 13.400 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585038550
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextInsulgrip® Straight Blade and Twist-Lock® Devices
Country of OriginUnited States
Dimensions2.33 in x 2.33 in x 3.86 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
ApplicationHeavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL21-20R
Size2.33 in x 2.33 in x 3.86 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating3 Phase WYE 120/208 VAC
Weight0.40 lb.
ConnectivityScrew Terminals
Display SizeStandard
Number Of Poles4-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#16 AWG to #8 AWG
Description - InvoiceLKG CONN, 20A 120/208V, L21-20R, B/W
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Cord Range0.350"-1.150" (9-29)
Cord Diameter0.350-1.150 in
MaterialNylon
BOX SIZE7.900x12.700x9.000 (in)
Carton - Number of Sub Packs30
Carton - SCC-14 Next Lower Level Sub Pack783585038551
Case Weight5.440 lb.
Lowest Level UOMEach
Pallet Height47.400 in
Pallet Weight1320.000 lb.
NAICS Code335931A102
