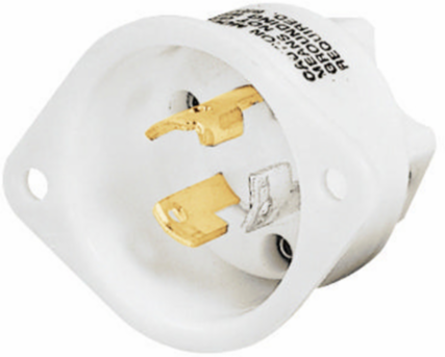

Bryant 4716MB Industrial Locking Device, Flanged Inlet, 15A 125V, 2-Pole, 3-Wire, L5-15P
- MPN: 4716MB
- UPC: 781786405202
- PPN: HBL-4716MB
- UNSPSC: 39121406
CAD
$49.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Flanged Inlet, 15A 125V, 2-Pole3-Wire Grounding, L5-15P, Screw Terminal, White
Features
- Flanged Inlet
- 15A 125V
- 2-Pole3-Wire Grounding
- L5-15P
- Screw Terminal
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 1.68 in
- Amperage Rating
- 15 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L5-15P
- Number of Wires
- 3-Wire
- Special Features
- Standard Product
- Type
- Flanged Inlet
- Wire Size
- #14 AWG to #10 AWG
- Width
- 2.50 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Equipment Base
- Description - Invoice
- LKG FLG-INLT, 15A 125V, L5-15P, WH
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- BOX SIZE
- 5.400x12.000x6.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786405202
- Case Weight
- 1.450 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 43.200 in
- Pallet Weight
- 301.600 lb.
Dimensions1.84 in x 2.50 in x 1.68 in
Length1.84 in
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Poles2-Pole
Size1.84 in x 2.50 in x 1.68 in
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating125 V
Voltage Rating Description125V
ConnectivityScrew Terminals
Nema RatingL5-15P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.45 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70781786405201
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
