Bryant

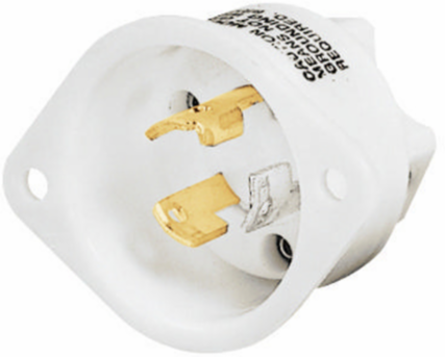

Bryant 4786MB Industrial Locking Device Flanged Inlet, 15A 277V AC, 2-Pole 3-Wire, White

Industrial Locking Device Flanged Inlet, 15A 277V AC, 2-Pole 3-Wire, White
  • MPN: 4786MB
  • UPC: 781786405301
  • PPN: HBL-4786MB
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$61.83/ EA

Description

Locking Devices, Industrial, Flanged Inlet, 15A 277V AC, 2-Pole 3-Wire Grounding, L7-15P, Screw Terminal, White

Features

  • Flanged Inlet
  • 15A 277V AC
  • 2-Pole 3-Wire Grounding
  • L7-15P
  • Screw Terminal
  • Standard Product

Specifications

Specifications

Country of Origin
United States
Height
1.68 in
Standards - RoHS Compliance Status
CM
Application
Extra Heavy Duty Industrial
Dielectric Strength
Withstands 3000V Minimum in
Insulation
Insulated Body
Number of Poles
2-Pole
Size
1.84 in x 2.50 in x 1.68 in
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating
277 VAC
Voltage Rating Description
277V AC
Connectivity
Screw Terminals
Nema Rating
L7-15P
Number Of Wires
3-Wire
Class Code
A08
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
A08A172
Current Rating
15 A
Base Unit of Measure
EA
Carton - Gross Weight per Pack
1.700 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Lowest Level UOM
Each
Dimensions1.84 in x 2.50 in x 1.68 in
Length1.84 in
Amperage Rating15 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL7-15P
Number of Wires3-Wire
Special FeaturesStandard Product
TypeFlanged Inlet
Wire Size#14 AWG to #10 AWG
Width2.50 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleEquipment Base
Description - InvoiceLKG FLG-INLT, 15A 277V, L7-15P
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialComposite
BOX SIZE5.268x12.018x6.018 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786405301
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
Yes
