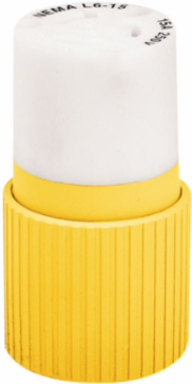

Bryant 4732NCCR Marine Grade Locking Connector, 15A 125V, 2-Pole 3-Wire, Yellow, Corrosion Resistant
- MPN: 4732NCCR
- UPC: 781786010154
- PPN: HBL-4732NCCR
- UNSPSC: 39121421
CAD
$85.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Marine Grade, Female Connector Body, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, Screw Terminal, Corrosion-Resistant, Yellow
Features
- Face and body feature alignment keys for easy assembly
- Amperage, voltage and NEMA configuration imprinted on face for easy identification
- Impact/chemical resistant, toughened nylon construction
- Internal “self-centering” Triple Gripper® cord grip with “radius teeth” design provides secure cord retention
- Corrosion Resistant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 2.95 in
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty Industrial
- Conductor Range
- #14 AWG to #12 AWG
- Insulation
- Insulated Body
- Number of Conductors
- 3-Wire Grounding
- Size
- 1.53 in x 1.53 in x 2.95 in
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 125 V
- Width
- 1.53 in
- Display Size
- Standard Sized Product
- Number Of Conductors
- 3-Wire Grounding
- Number Of Wires
- 3-Wire
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- LKG CONN, CM, 15A 125V, L5-15R, YL
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.05 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Dimensions1.53 in x 1.53 in x 2.95 in
Length1.53 in
Amperage Rating15 A
ColorYellow, White
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL5-15R
Number of Poles2-pole
Special FeaturesCorrosion Resistant
TypeConnector Body
Voltage Rating Description125 V
ConnectivityScrew Terminals
Nema RatingL5-15R
Number Of Poles2-pole
StyleInternal Cord Clamp
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Cord Diameter0.300-0.655 in
MaterialComposite
BOX SIZE5.500x12.000x6.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786010154
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
