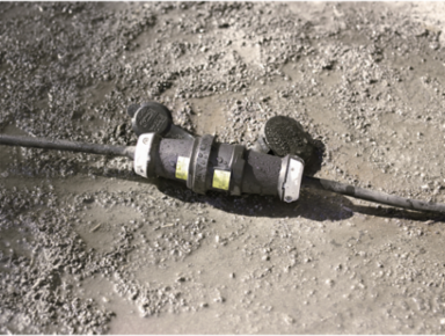

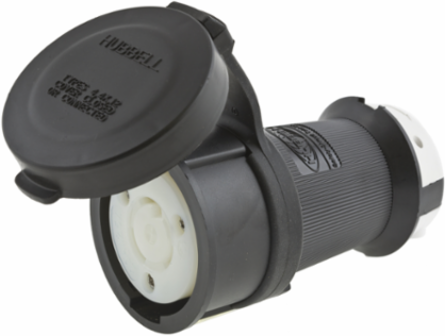

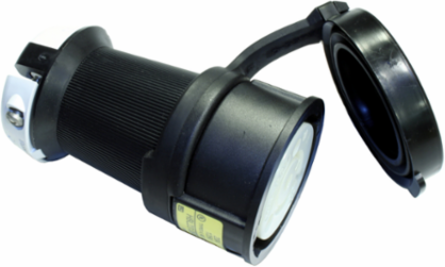

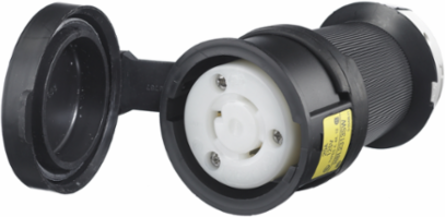

Hubbell Wiring Device-Kellems HBL2313SW Watertight Twist-Lock Female Connector, 20A 125V, 2-Pole 3-Wire, L5-20R
- MPN: HBL2313SW
- UPC: 783585231044
- PPN: HBL-HBL2313SW
- UNSPSC: 39121421
CAD
$132.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Black PBT housing, White PBT clamps.
Features
- UL Type 4X Environmental seal protects connection while in use.
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Closure cap is included for environmental seal when device is not in use
- Superior cord grip design protects terminations from excess strain.
- Standard Product
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | HBL2313SW AutoCAD Drawing |
|---|---|
| General Literature Asset 2 Display Text | Industrial Solutions |
| Country of Origin | United States |
| Dimensions | 2.57 in x 2.57 in x 4.40 in |
| Horsepower - Maximum | 1 |
| Length | 2.57 in |
| Standards - RoHS Compliance Status | CM |
| Application | Heavy Duty Industrial |
| Environmental Conditions | Watertight |
| NEMA Rating | L5-20R |
| Size | 2.57 in x 2.57 in x 4.40 in |
| Standard | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Type | Connector Body |
| Voltage Rating Description | 125 V |
| Width | 2.57 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Nema Rating | L5-20R |
| Number Of Wires | 3-Wire |
| Wire Size | #16 AWG to #8 AWG |
| Description - Invoice | LKG WT S/SHRD CONN, 20A 125V, L5-20R |
| Harmonization Code | 8536690200 |
| MSDS Flag | No |
| Cable Range | 0.360 - 0.930 in |
| Material - Mounting Hardware | Cord Mounted |
| Current Rating | 20 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 6.450 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585231043 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| General Literature Asset 1 Display Text | Safety Product Guide |
|---|---|
| General Literature Asset 3 Display Text | Education Application Guide |
| Current / Amperage Rating | 20 A |
| Height | 4.40 in |
| Industry Standard(s) | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Amperage Rating | 20 A |
| Color | Black, White |
| Insulation | Insulated Body |
| Number of Poles | 2-Pole |
| Special Features | Standard Product |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Voltage Rating | 125 V |
| Weight | 0.60 lb. |
| Connectivity | Pressure Terminal Screws |
| Display Size | Standard |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A08A130 |
| Cord Range | 0.360"-0.930" (9-24) |
| Cord Diameter | 0.360-0.930 in |
| Material | Composite |
| BOX SIZE | 5.700x18.900x8.100 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585231044 |
| Case Weight | 7.770 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 45.600 in |
| Pallet Weight | 734.400 lb. |
| NAICS Code | 335931A102 |
