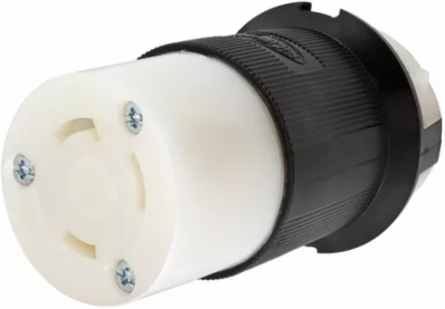

Hubbell Wiring Device-Kellems HBL2623ST Locking Female Connector Body, 30A 250V, 2-Pole 3-Wire, EdgeConnect™

Locking Female Connector Body, 30A 250V, 2-Pole 3-Wire, EdgeConnect™
Locking Female Connector Body, 30A 250V, 2-Pole 3-Wire, EdgeConnect™
Locking Female Connector Body, 30A 250V, 2-Pole 3-Wire, EdgeConnect™
Locking Female Connector Body, 30A 250V, 2-Pole 3-Wire, EdgeConnect™
  • MPN: HBL2623ST
  • UPC: 783585719252
  • PPN: HBL-HBL2623ST
  • UNSPSC: 39121421

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$112.77/ EA

Description

Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Female Connector Body, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screwless Terminal, Black and White

Features

  • Female Connector Body
  • 30A 250V
  • L6-30R
  • Screwless Terminal
  • EdgeConnect™ Technology, Screwless Termination

Specifications

Amperage
30 A
Number of Poles
2
Operating Temperature Range
-400C to 750C
Terminal Type
Screwless Termination
Width
2.400 in
Housing Material
Nylon
Terminal Spring Clamp Material
Spring Steel
Weight
0.35 lbs
Dielectric Voltage Withstand
3000 V minimum
Moisture Resistance
IP20
Series
EdgeConnect199 Twist-Lockae Series
Voltage250 V
Number of Wires3
Connector TypeFemale
Cord Diameter.360-.930 in
Terminal Accommodation#14 AWG - #8 AWG stranded copper wire
Contacts MaterialBrass
Assembly Screws Material/FinishZinc Plated Tri-drive
ListingsUL 498, CSA C22.2 No.42
Flammability RatingHB or better per UL94
Country of OriginChina
