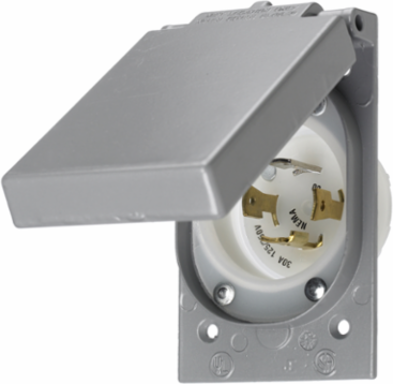

Hubbell Wiring Device-Kellems HBL2715M3 Twist-Lock Flanged Inlet 30A 125/250V, 3-Pole, 4-Wire, Gray
- MPN: HBL2715M3
- UPC: 783585039961
- PPN: HBL-HBL2715M3
- UNSPSC: 39121406
CAD
$99.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30P, Screw Terminal, Gray, With Weatherproof Cover
Features
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Integral self closing lift cover
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 4.56 in x 2.82 in x 2.34 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 30 A
- Color
- Gray
- Environmental Conditions
- Weather Protective
- NEMA Rating
- L14-30P
- Number of Wires
- 4-Wire
- Size
- 4.56 in x 2.82 in x 2.34 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Voltage Rating
- 125/250 VAC
- Voltage Rating Description
- 125/250 VAC
- Connectivity
- Back Wired Screw Terminals
- Nema Rating
- L14-30P
- Number Of Wires
- 4-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A110
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.75 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585039960
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating30 A
Height2.34 in
Length4.56 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles3-Pole
PhaseSingle Phase
Special FeaturesIntegral self closing lift cover
TypeFlanged Inlet
Wire Size#16 AWG to #8 AWG
Width2.82 in
Display SizeStandard Sized Product
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceCAT#HBL2715, WP COVER MOD
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE4.800x15.300x10.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585039961
Case Weight4.424 lb.
Lowest Level UOMEach
Pallet Height48.000 in
Pallet Weight786.000 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
