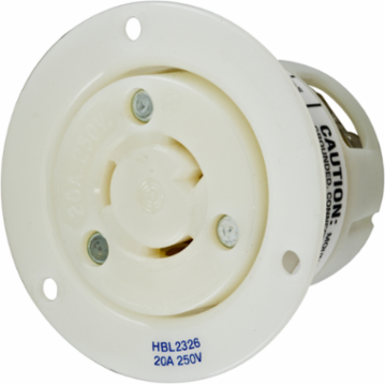

Hubbell Wiring Device-Kellems HBL2326 Insulgrip Twist-Lock Flanged Receptacle, 20A 250V, 2-Pole 3-Wire
- MPN: HBL2326
- UPC: 783585037875
- PPN: HBL-HBL2326
- UNSPSC: 39121406
CAD
$52.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 20A 250V, 2-Pole 3-Wire Grounding, NEMA L6-20R, Screw Terminal, Nylon casing, Back wired, White.
Features
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2326 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Entertainment Product Solution Guide
- Country of Origin
- United States
- Dimensions
- 2.88 in x 2.88 in x 2.09 in
- Horsepower - Maximum
- 2
- Length
- 2.88 in
- Standards - RoHS Compliance Status
- CM
- Application
- Insulgrip
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard
- Type
- Flanged Receptacle
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.25 lb.
- Connectivity
- Back Wired Screw Terminals
- Nema Rating
- L6-20R
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 2326
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 3.100x12.600x6.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585037875
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585037874
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextInsulgrip® Straight Blade and Twist-Lock® Devices
General Literature Asset 3 Display TextEmergency Preparedness for Healthcare
Current / Amperage Rating20 A
Height2.09 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL6-20R
Number of Wires3-Wire
Size2.88 in x 2.88 in x 2.09 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating250 VAC
Voltage Rating Description250 VAC
Width2.88 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG-RCPT, 20A 250V, L6-20R, WH
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight9.720 lb.
Lowest Level UOMEach
Pallet Height42.600 in
Pallet Weight694.800 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
