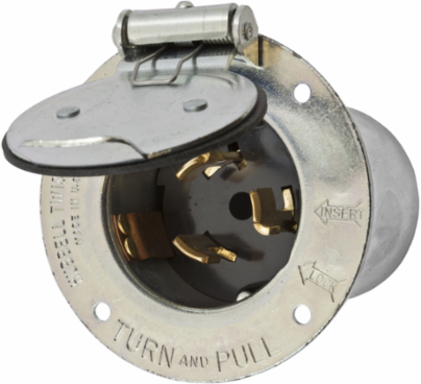

Hubbell Wiring Device-Kellems CS6375M2 Twist-Lock® Flanged Inlet, 50A, 125/250V, 3-Pole, Steel
- MPN: CS6375M2
- UPC: 783585910291
- PPN: HBL-CS6375M2
- UNSPSC: 39121406
CAD
$142.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A, 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Steel, With LiftCover
Features
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- Integral metallic weather protective lift cover cover
- With Lift Cover
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 2.17 in x 3.50 in x 2.63 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Special Features
- With Lift Cover
- Type
- Flanged Inlet
- Wire Size
- #10 AWG to #6 AWG
- Width
- 3.50 in
- Display Size
- Standard Sized Product
- Number Of Wires
- 4-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A150
- Current Rating
- 50 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.300 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585910290
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating50 A
Height2.63 in
Length2.17 in
Amperage Rating50 A
ColorMetallic
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Wires4-Wire
Size2.17 in x 3.50 in x 2.63 in
StandardCertified to CSA C22.2 No.42;Listed to UL 498
Voltage Rating125/250 VAC
Voltage Rating Description125/250 VAC
ConnectivityPressure Terminal Screws
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceCAT #CS6375 W/LIFT COVER
Harmonization Code8536699999
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialSteel, Zinc Plated
BOX SIZE7.900x13.600x12.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585910291
Case Weight11.200 lb.
Lowest Level UOMEach
Pallet Height47.400 in
Pallet Weight672.000 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- No
