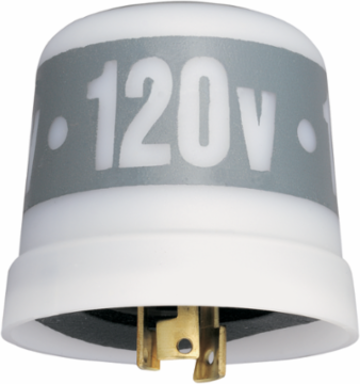

Intermatic LC4521LA Locking Thermal Photocontrol 120 V
Intermatic LC4521LA Locking Thermal Photocontrol 120 V
- MPN: LC4521LA
- UPC: 078275002661
- PPN: INT-LC4521LA
- UNSPSC: 39121524
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.48/ EA
Description
These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.
Features
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Integral high impact thermoplastic housing
- Locking type plug for quick installation and changeover
- Delay feature prevents unwanted OFF switching
- Complies with ANSI C136.10 standard
- Tested to 3,650 ON/OFF cycles
- NA
Specifications
Specifications
- Input Voltage Rating Range(s)
- 120 VAC, 50/60 Hz
- Color
- White with Gray Band
- Marketing Description
- These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.
- Length
- NA NA
- Width
- NA in
- Country of Origin
- Mexico
Warranty Period2-Year limited
ApplicationsOutdoor Lighting Control
Height2.75 in
WeightNA lbs
DepthNA in
