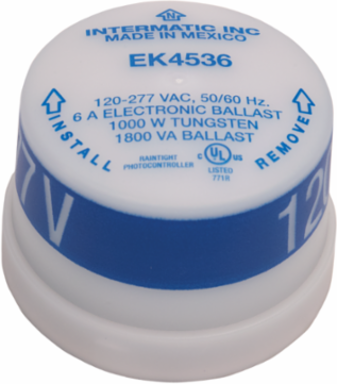

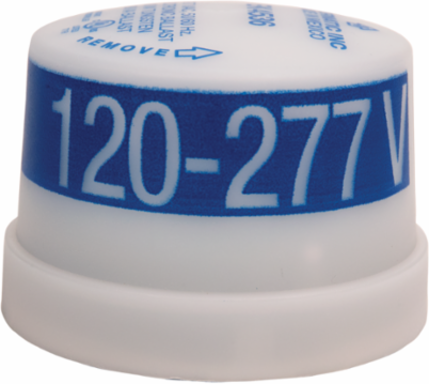

Intermatic EK4536 Electronic Photocontrol, Locking Type, 120-277 V
- MPN: EK4536
- UPC: 078275130173
- PPN: INT-EK4536
- UNSPSC: 39121524
CAD
$32.46
/ E
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed to meet a 15-year service life, this photocontrol is LED-compatible and backed by an 8-year warranty.
Features
- Non-drift silicon light sensor with IR filter
- DC relay with zero-crossing circuitry for extended life
- All components meet 15-year life expectancy
- Conformal coated PCB
- Exceeds 10,000 ON/OFF switching cycles
- Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
- 510 J MOV surge protection
- High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched
Documentation & Downloads
Specifications
Additional
- Voltage
- 120-277 VAC, 50/60 Hz
- Amperage
- 20 A
- Surge Protection
- 510 J MOV
- Switching Cycles
- 10,000 ON/OFF
- Magnetic Ballast Rating
- 1800 VA
- Electronic Ballast Load Rating
- 6 A, 120-277 VAC, 50/60 Hz
- Activation On Level
- 1.5 fc
- Fail Mode
- ON
- Photocontrol Style
- Locking type
- Expected Lifetime
- 15 years
- Diameter
- 3.375 in
- Housing Material
- Polypropylene
- Usage Environment
- Outdoor
- Country of Origin
- Mexico
Load Capacity1650 W @ 277 VAC
Sensor TypeSilicon Diode with IR filter
Switch TypeRelay
Operating Voltage Range102-305 VAC
Tungsten Load1000 W
Sensor Time DelayInstant ON; 2-5 sec OFF
Activation Off Level2.25 fc
Photocontrol TypeElectronic
Operating Temperature Range-406 to 706C
Height2.75 in
Photocontrol Sensor LocationSide
ColorWhite with Blue Band
Warranty8-Year limited
