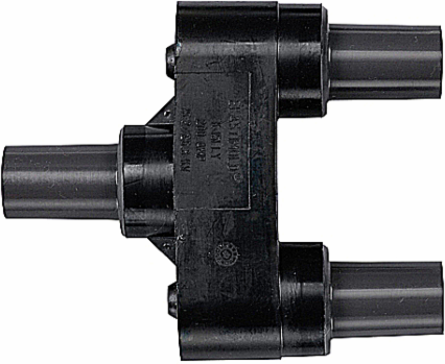

Thomas & Betts K151LYD1270D1270C123 Deadbreak Locking Splice with Test Point
- MPN: K151LYD1270D1270C123
- UPC: 783786552702
- PPN: T-B-K151LYD1270D1270C123
CAD
$2419.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 15/25kV, DeadBreak elbow, Locking Y Splice, Bails are not required for Locking Splices, Cable Insulation Diameter 0.890 inch to 1.220 inch. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. Includes an aluminum compression lug. Plus other options.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)4x10.75x9.25
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Permanent Locking Apparatus, Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide Cured Construction includes Insulation and Conductive EPDM Materials.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- 4/0 Stranded/Compressed or 250 Solid/Compact
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
- Consist Of
- Receptacle Housing, Pin Connectors, lubricant, Installation Instructions, Crimp Chart, Nylon Rod, Y-Bus
IGCC4586 Electrical connector assembly
TypeDeadbreak Locking Splice with Test Point
ApplicationUsed where a new tap is required on an existing cable or where a Y-joint is required in a new cable installation.
SizeLength 22.30 inches
MaterialHousing - EPDM Rubber
Voltage Rating15/25kV
InsulationYes, EPDM Rubber
Environmental ConditionsAll Weather Conditions
