Thomas & Betts 755L2-J2250-SG3 Deadbreak 2-Way L Kit
- MPN: 755L2-J2250-SG3
- UPC: 075114239455
- PPN: T-B-755L2-J2250-SG3
CAD
$3680.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kv 600 Amp L2 Splice With Sealing
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Cold-Shrinkable Seal with Copper Braid and Constant Force Spring
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression - Crimp
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 35kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Fully Submersible
IGCC4586 Electrical connector assembly
TypeDeadbreak 2-Way L Kit
ApplicationUsed to connect two cable ends and using the two insulating plugs as test points allows for capacitive voltage testing
Size25.38 inch Wide, 13.93 inch from Bottom of T to Center of Plug.
Conductor Range2/0 Stranded/Compressed or 3/0 Solid/Compact
ColorBlack
Amperage Rating600 Amps
Temperature Rating-40 degrees to +65 degrees Celsius

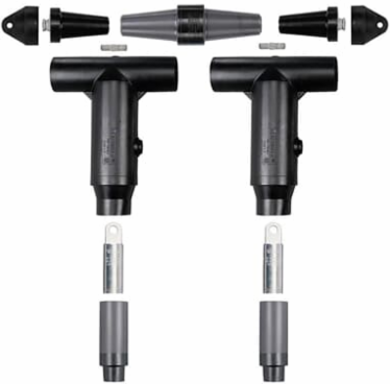

Consist Of(2) Elbows, (2) Cable Size Adapters, (2) Compression Lugs, (6) Tubes of Lubricant, (2) Basic Insulating Plugs with Caps, (2) Studs, (1) Connecting Plug, Installation Instructions, Crimp Chart.
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
