Deadbreak Separable H-Joint Assembly
Thomas & Betts

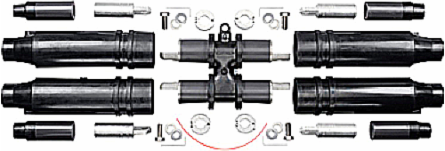

Thomas & Betts K656CH-L0320-SG1 Deadbreak Separable H-Joint Assembly

  • MPN: K656CH-L0320-SG1
  • UPC: 078378677896
  • PPN: T-B-K656CH-L0320-SG1
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

600 Amp, 15/25kV, Separable H Joint Kit, 4-Way with Test Point. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550. Cold Shrinkable Seal with Copper Rod and Crimp Connector Included.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121421 Electrical connector assembly
Brand Name
Elastimold
Special Features
Fully Shielded, Fully Submersible, 100 Percent Peroide Cured EPDM Molded Rubber. Includes Intergral Capacitive Test Point. Reusable Components Reduce Inventory and other Costs.
Standard
ANSI/IEEE Standard 386
Connection
Compression - Crimp
Material
Housing - EPDM Rubber
Voltage Rating
15/25kV
Insulation
Yes, EPDM Rubber
Environmental Conditions
All Weather Conditions
IGCC4586 Electrical connector assembly
TypeDeadbreak Separable H-Joint Assembly
ApplicationCompact Design is suitable for Small Vaults and Manholes.
SizeOverall Length 37.27 inches, Width 8.12 inches not counting 1 inch Test Point.
Conductor RangeCompressed/Stranded 450 or Compacted/Solid 500/550.
ColorBlack
Amperage Rating600 Amps
Temperature Rating-40 degrees to +65 degrees Celsius
Consist Of1 4-Way Bus Bar, 2 Tubes Lubricant, 4 Straight Recceptacles, 4 Compression Lugs, 4 Cable Adapters, 4 Adapter Retaining Rings, 4 Bolts/Washers, Insstallation Instructions

Packaging

Outer Quantity
1
Weight Uom
1 lbs. Each
Outer Dimensions (inches)1x1x1
