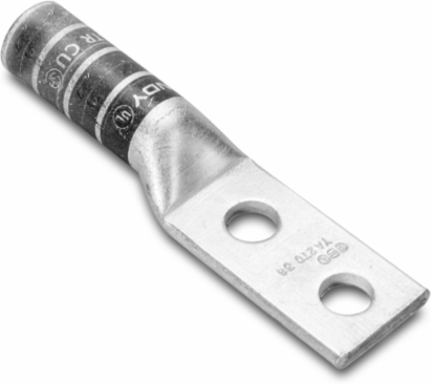

Burndy YA1C2TC14 Long Length Barrel Terminal, 1 AWG, 1/4 Inch Stud, 35 kV, 2 Holes, Tin Plated
- MPN: YA1C2TC14
- UPC: 781810019771
- PPN: BUR-50239E
CAD
$28.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Comp Terminal Code Cond, Bvl Entry, 2 Hole/W/O/InspWindow, #1 AWG Code, 75 Navy, 600 V-35 kV, 1/4" Stud, 0.62" Spacing, Lng bbl, Green, 11 or 375 Index
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-3/8 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Hole Size inch | 0.27 in |
| Dimension - L Length Overall mm | 77 mm |
| Dimension - N inch | 0.31 in |
| Dimension - Pad Width inch | 0.67 in |
| Dimension - Stud Size inch | 1/4 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 1.38 in |
|---|---|
| Dimension - D inch | 1.27 in |
| Dimension - Hole Size mm | 7 mm |
| Dimension - Length Overall inch | 3.03 in |
| Dimension - Outside Diameter inch | 0.46 in |
| Dimension - Strip Length inch | 1-7/16 |
| Dimension - Z inch | 0.34 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
|---|---|
| Conductor - Copper Solid Size Range | 1 AWG |
| Conductor - Copper Str Navy Size Range | 75 (37) Navy |
| Conductor - Copper Str Size Range | 1 AWG |
| Conductor - Copper Solid Size | 1 AWG |
|---|---|
| Conductor - Copper Str Navy Size | 75 (37) Navy |
| Conductor - Copper Str Size | 1 AWG |
| Conductor - Material | Copper |
General
| Color Code | Green |
|---|---|
| Die Index | 11;375 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Plated | Y |
| Temperature Rating | 194 |
| Type | Long Barrel, Tin Plated |
| UPC 12 Digit | 7818100197711 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810019771 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
