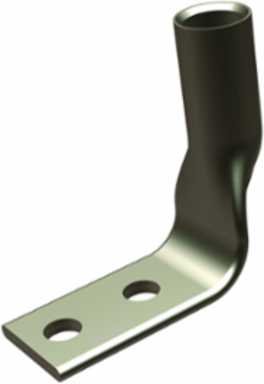

Burndy YA2CL2NT1490 Long Length Barrel Terminal, 2 AWG, 35 kV, 1/4 Inch Stud, Tin Plated

MPN: YA2CL2NT1490
UPC: 781810314036
PPN: BUR-10015267

$37.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu Comp Terminal Code Cond, Narrow Tongue/Bvl Entry, 2 Hole/W/InspWindow, #2 AWG Str, N60 Navy, 600 V-35 kV, 1/4" Stud, 0.63" Spacing, 90 Deg Bent, Std bbl.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length inch	0.88 in
Dimension - D inch	1.26 in
Dimension - Hole Size inch	0.27 in
Dimension - L Length Overall mm	48 mm
Dimension - N inch	0.31 in
Dimension - Pad Width inch	0.48 in
Dimension - Z inch	0.32 in

Dimension - Bolt Hole Size inch	0.27 in
Dimension - Height inch	1.37 in
Dimension - Hole Size mm	7 mm
Dimension - Length Overall inch	1.68 in
Dimension - Outside Diameter inch	0.42 in
Dimension - Strip Length inch	15/16
Physical Attribute - Tongue Angle	90 Degree

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - AL Str Size	2 AWG
Conductor - Copper Str Navy Size	60 (37) Navy
Conductor - Copper Str Size	2 AWG

Conductor - AL Str Size Range	2 AWG
Conductor - Copper Str Navy Size Range	60 (37) Navy
Conductor - Material	Copper

General

Application	For Code Conductor
Connector Type	Terminal
Feature - Barrel Style	Chamfered
Material	Copper
Plated	Y
Sub Brand	TERMINALS, HYLUG
Trade Name	HYLUG™
UPC	781810314036

Color Code	Brown
Die Index	10
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	2
Plating Type	Tin
Temperature Rating	194
Type	Long Barrel, Tin Plated
UPC 12 Digit	7818103140366
