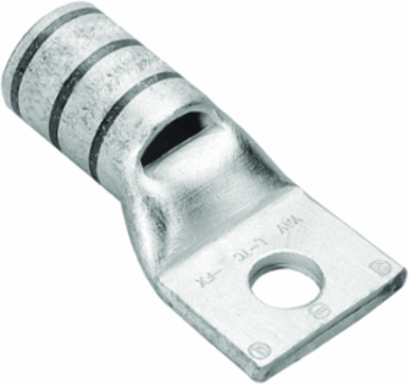

Burndy YAV2CTC38FX Long Length Barrel Terminal, 2 AWG, 0.41 Inch Hole Size, Tin Plated, Copper
- MPN: YAV2CTC38FX
- UPC: 781810330517
- PPN: BUR-10022597
CAD
$13.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression long barrel flex conductor, Single hole/W/O/ insp window, #2 Weld(125/24-150/24), #2AWG, 3/8" stud, Tin plated, Brown, 10 index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-3/8 in
- Dimension - Hole Size inch
- 0.41 in
- Dimension - L Length Overall mm
- 66 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 0.68 in
- Dimension - Z inch
- 0.42 in
Dimension - B Length inch1.38 in
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch2.58 in
Dimension - Outside Diameter inch0.46 in
Dimension - Strip Length inch1-7/16
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 2 (150/#24) DLO
- Conductor - Copper Flex H Size
- 2 AWG
- Conductor - Copper Flex K Size
- 2 AWG
- Conductor - Copper Str Size
- 2 AWG
Conductor - Copper Flex G Size2 AWG
Conductor - Copper Flex I Size2 AWG
Conductor - Copper Flex M Size2 AWG
Conductor - MaterialCopper
General
- Color Code
- Brown
- Die Index
- 10
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin
- Type
- Long Barrel, Tin Plated
- UPC 12 Digit
- 7818103305177
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810330517
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
