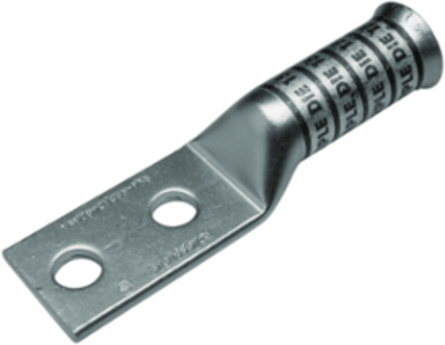

Burndy YAV6C2NFXB Long Length Barrel Connector, 2-Hole, 6 AWG, 35 kV, 1/2 Inch Stud, Tin Plated
- MPN: YAV6C2NFXB
- UPC: 781810323922
- PPN: BUR-10016316
CAD
$33.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Compression telecom Terminal, 2 Holes, #6 Str #8(61/#24)DLO Flex, #6 AWG Code, 600V - 35kV, 1/2" Stud, 1.75" Spacing, Long Barrel, Belled End
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-5/16 in
- Dimension - Bolt Hole Size inch
- 0.56 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - L Length Overall mm
- 115 mm
- Dimension - N inch
- 0.62 in
- Dimension - Pad Width inch
- 0.83 in
- Dimension - Stud Size inch
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.22 in
Dimension - D inch3.01 in
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch4.51 in
Dimension - Outside Diameter inch0.31 in
Dimension - Strip Length inch1-5/16
Dimension - Z inch0.64 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 6 (61/#24) DLO
- Conductor - Copper Flex H Size
- 6 AWG
- Conductor - Copper Flex K Size
- 6 AWG
- Conductor - Copper Flex M Size Range
- 6 AWG
- Conductor - Material
- Copper
Conductor - Copper Flex G Size6 AWG
Conductor - Copper Flex I Size6 AWG
Conductor - Copper Flex M Size6 AWG
Conductor - Copper Str Size6 AWG
General
- Color Code
- Blue
- Die Index
- 7
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Tin - Electro Plated
- Type
- Long Barrel, Tin Plated
- UPC 12 Digit
- 7818103239222
Connector TypeTerminal
Feature - Barrel StyleBelled
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810323922
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
