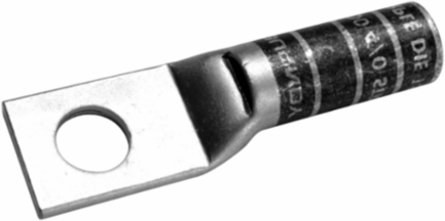

Burndy YAZ26TC12 Long Length Barrel Lug, 2/0 AWG, 1/2 Inch Stud, Tin Plated, Copper

MPN: YAZ26TC12
UPC: 781810240038
PPN: BUR-25020388

$26.29

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Copper Compression Lug, 1 Hole w/ Inspection Window, 2/0 AWG, 1/2" Stud, Long Barrel, Tin Plated.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length inch	1.50 in
Dimension - Bolt Size fraction	1/2
Dimension - Hole Size mm	13 mm
Dimension - Length Overall inch	3.00 in
Dimension - Outside Diameter inch	0.56 in
Dimension - Strip Length inch	1-9/16
Dimension - Z inch	0.55 in

Dimension - Bolt Hole Size inch	0.52 in
Dimension - Hole Size inch	0.52 in
Dimension - L Length Overall mm	76 mm
Dimension - N inch	0.53 in
Dimension - Pad Width inch	0.83 in
Dimension - Stud Size inch	1/2
Physical Attribute - Tongue Angle	Straight

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper Str Navy Size	125 (61) Navy
Conductor - Copper Str Size	2/0 AWG

Conductor - Copper Str Navy Size Range	125 (61) Navy
Conductor - Material	Copper

General

Application	For Code Conductor
Connector Type	Terminal
Feature - Barrel Type	Long
Physical Attribute - Number of Holes	1
Plating Type	Tin - Electro Plated
Trade Name	HYLUG™
UPC	781810240038
