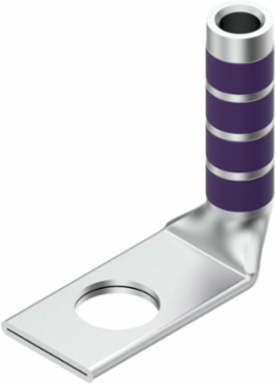

Burndy YAZ28TC3890 Long Length Barrel Terminal, 4/0 AWG, 1 Hole, 3/8 Inch Stud, Copper, Purple
- MPN: YAZ28TC3890
- UPC: 781810240120
- PPN: BUR-25020397
CAD
$39.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1 Hole HYLUG Cu Compr Terminal, Long Brrl, W/ Insp Window, 4/0 AWG, 200 Navy, 3/8" stud, Purple, 15 Index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.62 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Hole Size inch
- 0.40 in
- Dimension - L Length Overall mm
- 33 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 1.02 in
- Dimension - Z inch
- 0.42 in
Dimension - Bolt Hole Size inch0.4 in
Dimension - Height inch2.36 in
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch1.29 in
Dimension - Outside Diameter inch0.69 in
Dimension - Strip Length inch1-11/16
Physical Attribute - Tongue Angle90 Degree
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 200 (61) Navy
- Conductor - Copper Str Size
- 4/0 AWG
Conductor - Copper Str Navy Size Range200 (61) Navy
Conductor - MaterialCopper
General
- Color Code
- Purple
- Die Index
- 15
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin - Electro Plated
- Type
- Long Barrel, Skive, Tin Plated
- UPC 12 Digit
- 7818102401200
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
PlatedYes
Trade NameHYLUG™
UPC781810240120
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 10
