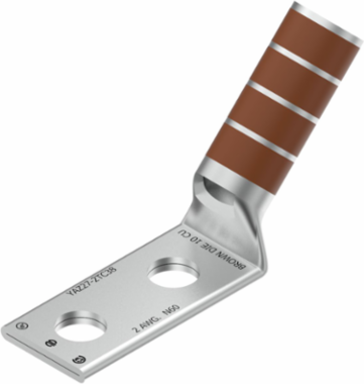

Burndy YAZ2C2TC1445 Long Length Barrel Terminal, Copper, 2 AWG, 2.65 Inch Overall Length, Tin Plated

MPN: YAZ2C2TC1445
UPC: 781810229255
PPN: BUR-25019299

$23.86

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

COPPER COMPRESSION TERMINAL.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length inch	1.25 in
Dimension - Height inch	1.42 in
Dimension - Hole Size mm	7 mm
Dimension - Length Overall inch	2.65 in
Dimension - Outside Diameter inch	0.42 in
Dimension - Strip Length inch	1-5/16
Physical Attribute - Tongue Angle	45 Degree

Dimension - Bolt Hole Size inch	0.27 in
Dimension - Hole Size inch	0.27 in
Dimension - L Length Overall mm	67 mm
Dimension - N inch	0.31 in
Dimension - Pad Width inch	0.60 in
Dimension - Z inch	0.96 in

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper Str Navy Size	60 (37) Navy
Conductor - Copper Str Size	2 AWG

Conductor - Copper Str Navy Size Range	60 (37) Navy
Conductor - Material	Copper

General

Color Code	Brown
Die Index	10
Feature - Barrel Type	Long
Physical Attribute - Number of Holes	2
Plated	Yes
Trade Name	HYLUG™
UPC	781810229255

Connector Type	Terminal
Feature - Barrel Style	Skived
Material	Copper
Physical Attribute - Tongue Type	Standard
Plating Type	Tin - Electro Plated
Type	Long Barrel, Skive, Tin Plated
UPC 12 Digit	7818102292555
