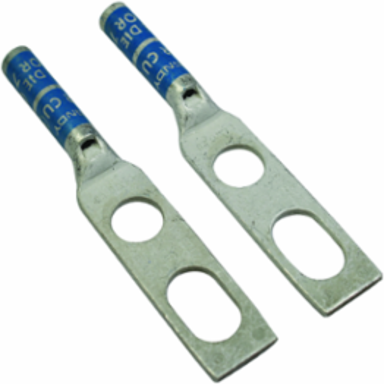

Burndy YAZ3C2TC38SL Long Length Barrel Terminal, 2 AWG, 3/8 Inch Stud, 3.39 Inch Length
- MPN: YAZ3C2TC38SL
- UPC: 781810499443
- PPN: BUR-10112965
CAD
$20.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Tubing Compression Terminal, Slotted Hole, 2 Holes W/InspWindow, #3 AWG - #2 Sol. Code, 50 Navy, 3/8" Stud
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/4 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 3.39 in
- Dimension - Outside Diameter inch
- 0.38 in
- Dimension - Strip Length inch
- 1-5/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.25 in
Dimension - Hole Size inch0.40 in
Dimension - L Length Overall mm86 mm
Dimension - N inch0.41 in
Dimension - Pad Width inch0.58 in
Dimension - Stud Size inch3/8
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 2 AWG
- Conductor - Copper Str Navy Size
- 50 (19) Navy
- Conductor - Material
- Copper
Conductor - Copper Solid Size Range2 AWG
Conductor - Copper Str Size3 AWG
General
- Color Code
- White
- Die Index
- 9
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810499443
Connector TypeTerminal
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
UPC 12 Digit7818104994433
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
