Louisville Ladder FE3116 16 Foot Fiberglass Straight Ladder, Type IA, 300 lbs Load Capacity
- MPN: FE3116
- UPC: 728865069184
- PPN: LOU-FE3116
CAD
$509.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Louisville 16 foot fiberglass single ladder has a load capacity of 300 pounds, rated ANSI Type IA. This ladder features direct rung - rail connection for rigidity and stability, D-shaped rungs, mar-resistant rail end caps, and swivel safety shoes with metal shield. The Louisville FE3116 straight ladder meets or exceeds the safety standards set by ANSI and OSHA.
Features

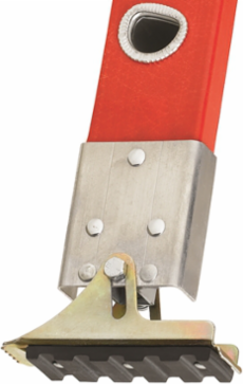

- Steel Swivel Safety Shoe With Metal Shield

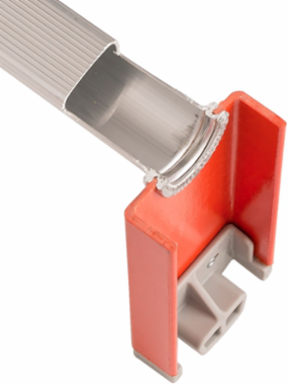

- Mar-Resistant Rail End Caps
- Direct Rung-Rail Connection

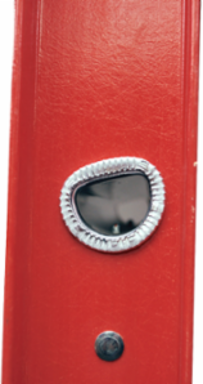

- D-Shaped Rungs
- ANSI Certified
- OSHA Certified
Documentation & Downloads
Specifications
Key Specifications
| Style | Single |
|---|---|
| Load Capacity (lbs) | 300 |
| Number of Steps | 16 |
| Step Depth | 1.5 |
| Weight | 36 |
| Closed Volume (cu. ft.) | 8.787 |
| Closed Depth | 4.191 |
| Section Length (ft) | 16 |
| Max. Extended Length (ft) | 16 |
| Inside Width Base (in) | 15.270 |
| Duty Rating | Type IA |
|---|---|
| Size | 16 |
| Rung Type | D-rung |
| Material | Fiberglass |
| Maximum Standing Height (in) | 12.500 |
| Closed Height | 196.5 |
| Closed Width (in) | 18.437 |
| Total Length (ft) | 16 |
| Rail Depth (in) | 3.3125 |
| Outside Width Base (in) | 17.688 |
