Louisville Ladder L-3022-32PT 32 Foot Fiberglass Extension Ladder, Type IA, 300 lb Load Capacity

  • MPN: L-3022-32PT
  • UPC: 728865068385
  • PPN: LOU-L-3022-32PT

CAD

$865.05

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

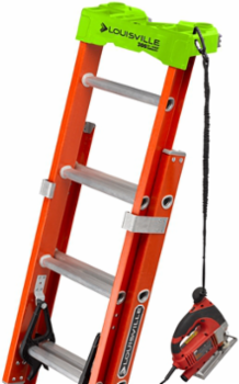

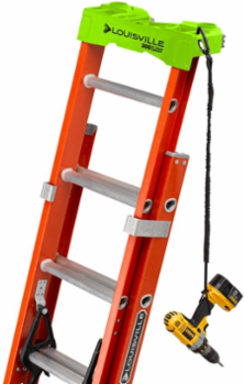

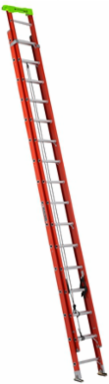

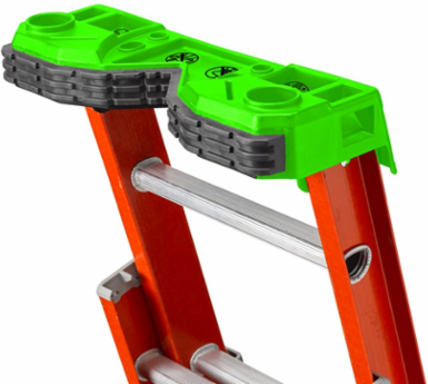

This Louisville 32 foot fiberglass extension ladder has a 300lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes our patented ProTop specially designed to increase productivity. This innovative ProTop features a corner grip, pole grip, integrated bumper, and work tray; all compact and accessible in a spacious design. This ladder also features outside slide guides, fully serrated D-shape rungs for a slip-resistant surface, non-marring rail end caps, QuickLatch rung lock for better secure operation, rope and pulley, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville L-3022-32PT fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

Features

  • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made

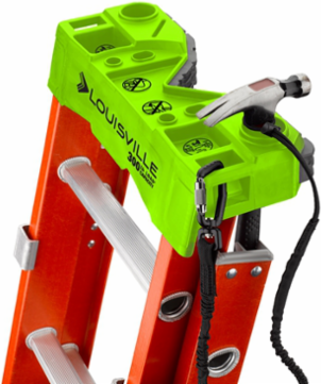

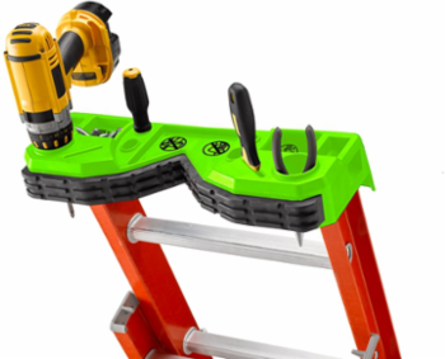

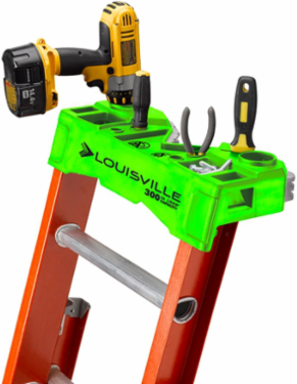

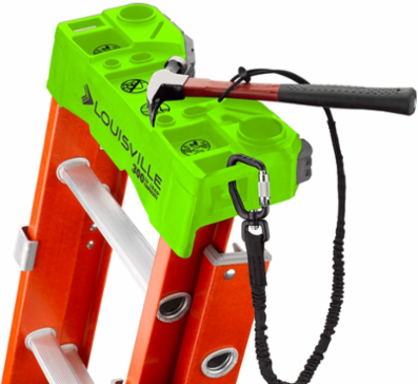

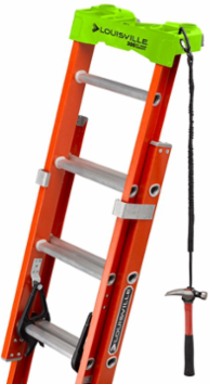

  • ProTop With Multiple Tool Slots And Magnet

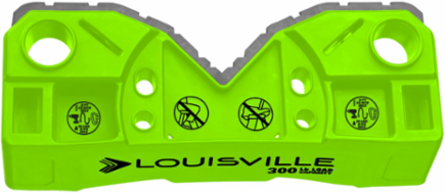

  • V-Shape ProTop Allows The Ladder To Lean Against Walls
  • Buildings And Poles
  • Patented Quicklatch Runglock System
  • Steel Swivel Safety Shoe With Metal Shield
  • Mar-Resistant Rail End Caps
  • Outside Slide Guides
  • ANSI Certified
  • OSHA Certified

Documentation & Downloads

Specifications

Key Specifications

Style
Standard
Load Capacity (lbs)
300
Number of Steps
32
Step Depth
1.5
Weight
67
Closed Volume (cu. ft.)
13.468
Closed Depth
6.375
Section Length (ft)
16
Max. Extended Length (ft)
29
Inside Width Base (in)
15.270
Outside Width Base (in)
17.670
Duty RatingType IA
Size32
Rung TypeD-rung
MaterialFiberglass
Maximum Standing Height (in)29’
Closed Height198
Closed Width (in)18.437
Total Length (ft)32
Rail Depth (in)3.125
Inside Width Fly (in)14.313
Outside Width Fly (in)16.713
