Louisville Ladder

Louisville Ladder AE2220 20-Foot Aluminum Extension Ladder, Type IA, 300 lb Load Capacity

  • MPN: AE2220
  • UPC: 728865015112
  • PPN: LOU-AE2220

CAD

$702.75

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

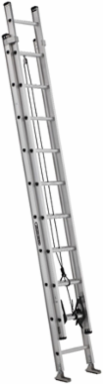

This Louisville 20 foot aluminum industrial extension ladder has a 300 pound load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made This ladder also includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder also features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, mar-resistant rail end caps, full I-beam for a more stable connection and to prevent twisting, and swivel safety shoes to be used as tread down or in spike position. The Louisville AE2220 aluminum extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

Features

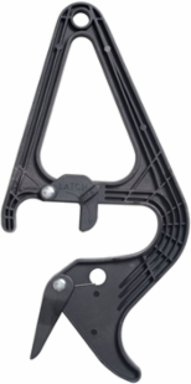

  • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made

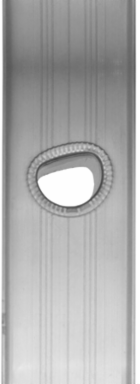

  • D-Shaped Rungs

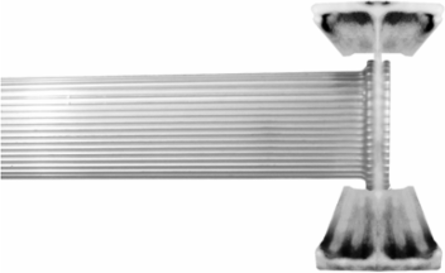

  • Full I-Beam
  • Mar-Resistant Rail End Caps

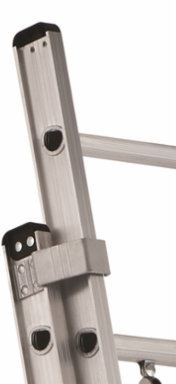

  • Outside Slide Guides

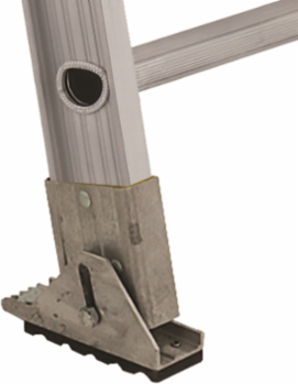

  • Swivel Safety Shoes

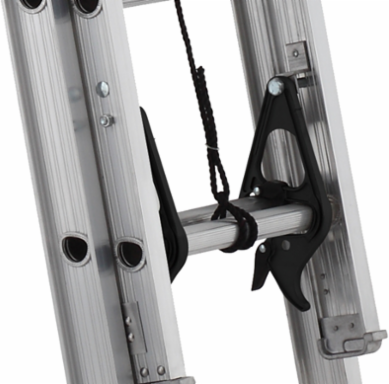

  • Patented Quicklatch Runglock System
  • ANSI Certified
  • OSHA Certified

Specifications

Key Specifications

StyleStandard
Load Capacity (lbs)300
Number of Steps20
Step Depth1.5
Weight37
Closed Volume (cu. ft.)9.306
Closed Depth6.625
Section Length (ft)10
Max. Extended Length (ft)17
Inside Width Base (in)15.563
Outside Width Base (in)17.813
Duty RatingType IA
Size20
Rung TypeD-rung
MaterialAluminum
Maximum Standing Height (in)17’
Closed Height124.875
Closed Width (in)19.438
Total Length (ft)20
Rail Depth (in)3
Inside Width Fly (in)13.063
Outside Width Fly (in)15.313
