Louisville Ladder AE2224 24-Foot Aluminum Extension Ladder, Type IA, 300 lb Load Capacity
- MPN: AE2224
- UPC: 728865015143
- PPN: LOU-AE2224
CAD
$817.39
/ EA
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Features

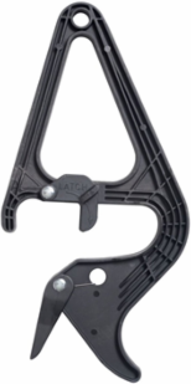

- Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made

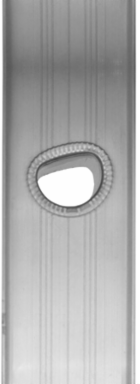

- D-Shaped Rungs

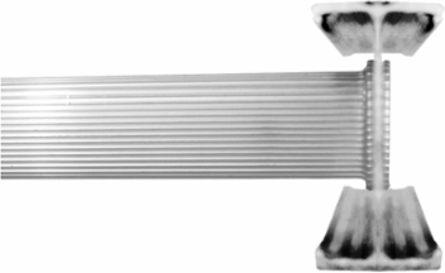

- Full I-Beam
- Mar-Resistant Rail End Caps

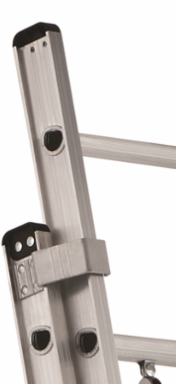

- Outside Slide Guides

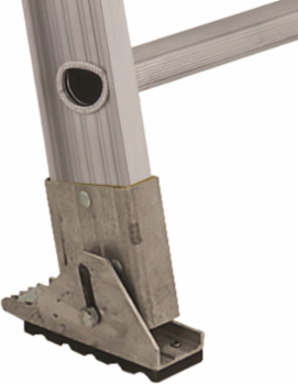

- Swivel Safety Shoes

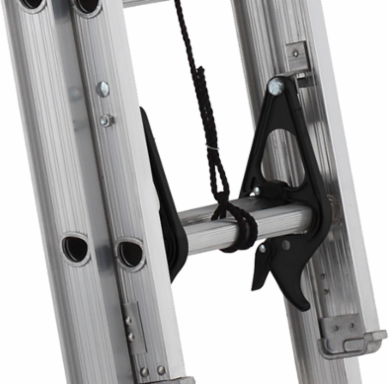

- Patented Quicklatch Runglock System
- ANSI Certified
- OSHA Certified
Specifications
Key Specifications
| Style | Standard |
|---|---|
| Load Capacity (lbs) | 300 |
| Number of Steps | 24 |
| Step Depth | 1.5 |
| Weight | 42 |
| Closed Volume (cu. ft.) | 11.094 |
| Closed Depth | 6.625 |
| Section Length (ft) | 12 |
| Max. Extended Length (ft) | 21 |
| Inside Width Base (in) | 15.563 |
| Outside Width Base (in) | 17.813 |
| Duty Rating | Type IA |
|---|---|
| Size | 24 |
| Rung Type | D-rung |
| Material | Aluminum |
| Maximum Standing Height (in) | 21’ |
| Closed Height | 148.875 |
| Closed Width (in) | 19.438 |
| Total Length (ft) | 24 |
| Rail Depth (in) | 3 |
| Inside Width Fly (in) | 13.063 |
| Outside Width Fly (in) | 15.313 |
