Louisville Ladder

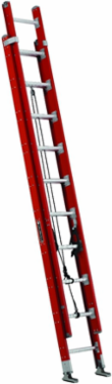

Louisville Ladder FE7220 20 Foot Fiberglass Extension Ladder, Type IA, 300 Load Capacity

  • MPN: FE7220
  • UPC: 728865085986
  • PPN: LOU-FE7220

CAD

$846.32

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This Louisville 20 foot fiberglass extension ladder has a 300lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder features aluminum rung connector plates, outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville FE7220 fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

Features

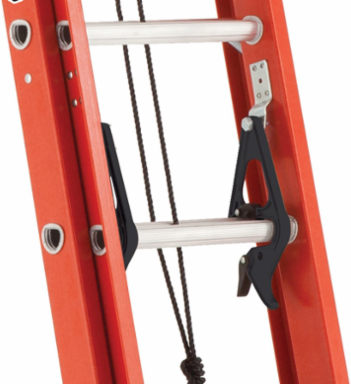

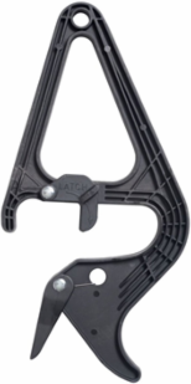

  • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made

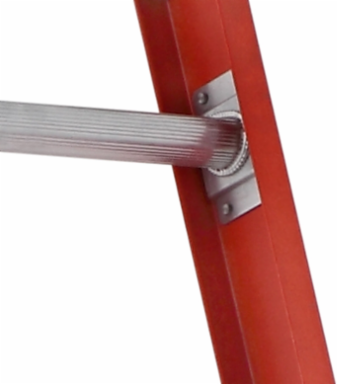

  • Aluminum Rung Connector Plates

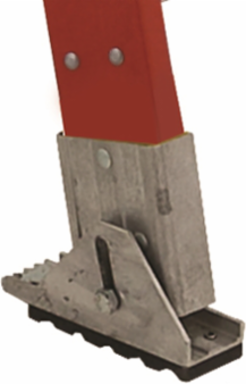

  • Aluminum Swivel Safety Shoes With Full Metal Boot
  • Patented Quicklatch Runglock System
  • D-Shaped Rungs

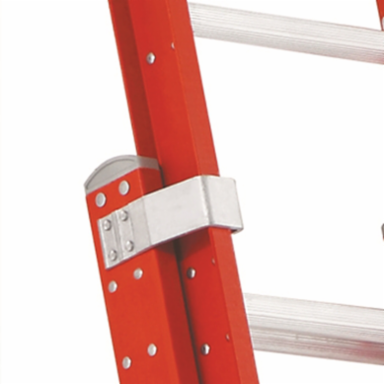

  • Outside Slide Guides
  • Mar-Resistant Rail End Caps
  • ANSI Certified
  • OSHA Certified

Documentation & Downloads

Specifications

Key Specifications

StyleStandard
Load Capacity (lbs)300
Number of Steps20
Step Depth1.5
Weight46
Closed Volume (cu. ft.)8.681
Closed Depth6.5
Section Length (ft)10
Max. Extended Length (ft)17
Inside Width Base (in)15.000
Outside Width Base (in)17.375
Duty RatingType IA
Size20
Rung TypeD-rung
MaterialFiberglass
Maximum Standing Height (in)17’
Closed Height124.75
Closed Width (in)18.5
Total Length (ft)20
Rail Depth (in)3.25
Inside Width Fly (in)13.688
Outside Width Fly (in)16.063
