Louisville Ladder FE7236 36 Foot Fiberglass Extension Ladder, Type IA, 300 lb Load Capacity
Louisville Ladder FE7236 36 Foot Fiberglass Extension Ladder, Type IA, 300 lb Load Capacity
- MPN: FE7236
- PPN: LOU-FE7236
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1671.14/ EA
Description
This Louisville 36 foot fiberglass extension ladder has a 300lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder features aluminum rung connector plates, outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville FE7236 fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.
Features
- Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made

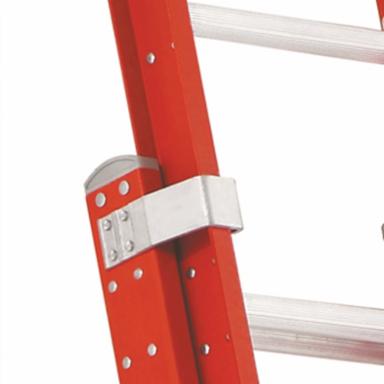

- Aluminum Rung Connector Plates

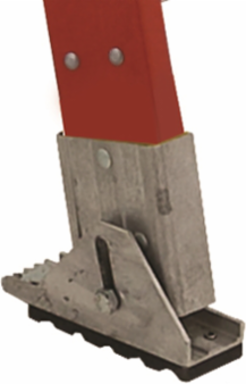

- Aluminum Swivel Safety Shoes With Full Metal Boot

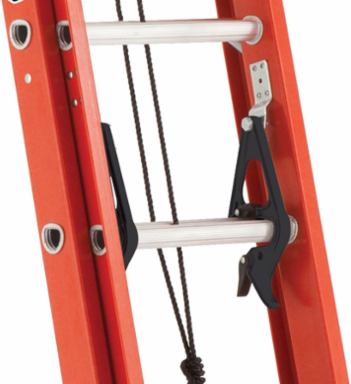

- Patented Quicklatch Runglock System

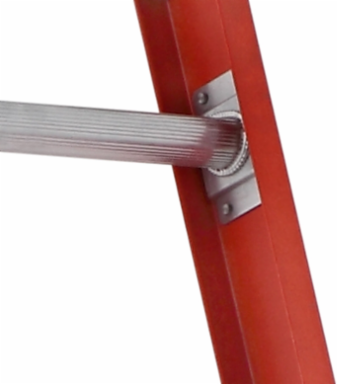

- D-Shaped Rungs
- Outside Slide Guides
- Mar-Resistant Rail End Caps
- ANSI Certified
- OSHA Certified
Specifications
Specifications
- Style
- Standard
- Load Capacity (lbs)
- 300
- Number of Steps
- 36
- Step Depth
- 1.5
- Weight
- 88
- Closed Volume (cu. ft.)
- 15.362
- Closed Depth
- 6.5
- Section Length (ft)
- 18
- Max. Extended Length (ft)
- 32
- Inside Width Base (in)
- 15.000
- Outside Width Base (in)
- 17.375
Duty RatingType IA
Size36
Rung TypeD-rung
MaterialFiberglass
Maximum Standing Height (in)32’
Closed Height220.75
Closed Width (in)18.5
Total Length (ft)36
Rail Depth (in)3.34375
Inside Width Fly (in)13.688
Outside Width Fly (in)16.063
