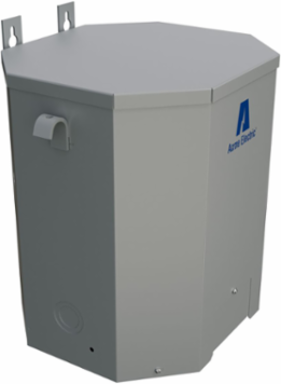

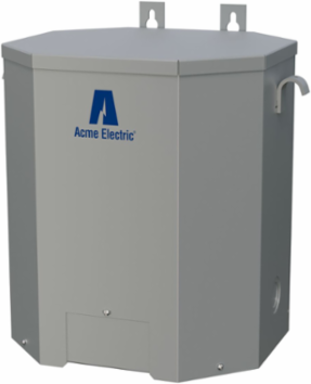

Acme Electric TF252795S Low Voltage Distribution Transformer 10kVA, 120/240V, Wall Mount, Dimensions 10.84x13.5x15.19 Inch
- MPN: TF252795S
- UPC: 047503190609
- PPN: HBL-TF252795S
- UNSPSC: 39121001
CAD
$4202.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Single Phase, 190/200/208/220 X 380/400/416/440 - 120/240V, 10kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimensions
- 10.84 in x 13.5 in x 15.19 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Dry Type Distribution Transformer
- Frequency Rating
- 50/60 Hz
- Length
- 10.84 in
- Primary Voltage
- 190/200/208/220 X 380/400/416/440 V
- UL Insulation Class
- 180°C
- Weight
- 125 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503190609
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
CSA StandardC22.2 No. 47
kVA10.0
Product CategoryDry Type Distribution Transformer
Secondary Voltage120/240 V
Height15.19 in
MountingWall
Width13.5 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE18.000x13.000x15.000 (in)
Pallet Height23.000 in
Pallet Weight798.000 lb.
NAICS Code335311
Certifications
- Buy American Compliant
- Contact Manufacturer
CE CompliantCE Marked
