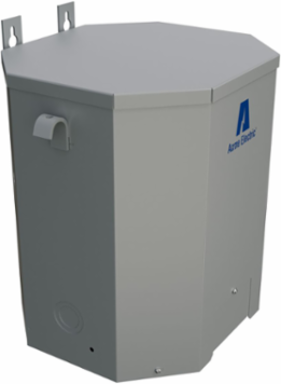

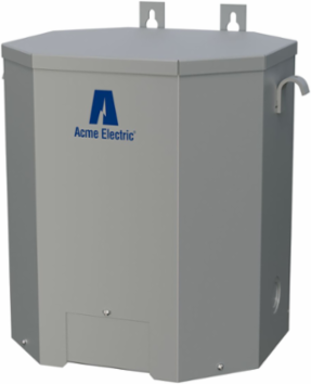

Low Voltage Distribution Transformer 25kVA 120/240V Wall Mount
Low Voltage Distribution Transformer 25kVA 120/240V Wall Mount
Acme Electric

Acme Electric TF279267S Low Voltage Distribution Transformer 25kVA 120/240V Wall Mount

  • MPN: TF279267S
  • UPC: 047503420973
  • PPN: HBL-TF279267S
  • UNSPSC: 39121001
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Low Voltage Distribution Transformer - Single Phase, 190/208/220/240 X 380/416/440/480 - 120/240V, 25kVA

Features

  • Quiet operation with sound levels below NEMA standards
  • Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico
Dimensions
13.34 in x 16.13 in x 18.44 in
Max Temperature Rise
115 Degrees Celsius
Product Type
Dry Type Distribution Transformer
Frequency Rating
50/60 Hz
Length
13.34 in
Primary Voltage
190/208/220/240 X 380/416/440/480 V
UL Insulation Class
180°C
Weight
300 lb.
Mounting Type
Wall
ARRA Compliant
Contact Manufacturer
Freight Class Code
06342001
Image Actual Or Representative
A
Sub Class Code
D10D100
Winding Material
AL
Base Unit of Measure
EA
Carton - SCC-14 Next Lower Level Sub Pack
00047503420973
Pallet Length
40.000 in
Pallet Width
40.000 in
CSA StandardC22.2 No. 47
kVA25.0
Product CategoryDry Type Distribution Transformer
Secondary Voltage120/240 V
Height18.44 in
MountingWall
Width16.13 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504330020
Stock IndicatorS - Shelf Stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE18.000x13.000x15.000 (in)
Pallet Height23.000 in
Pallet Weight807.000 lb.
NAICS Code335311

Certifications

Buy American Compliant
Contact Manufacturer
CE CompliantCE Marked
