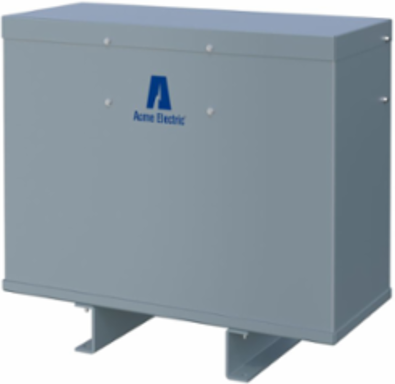

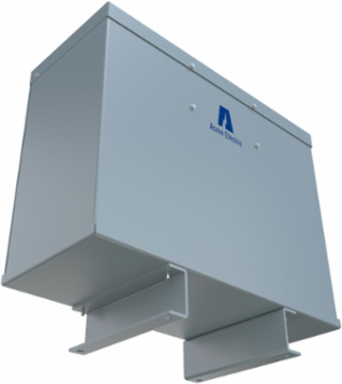

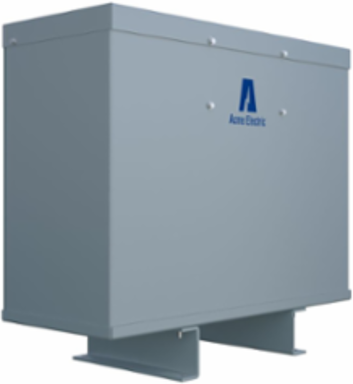

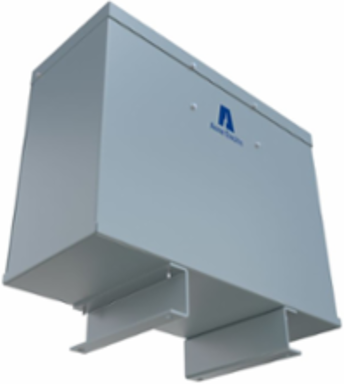

Acme Electric T379083S Low Voltage Distribution Transformer 15kVA, 400Y/231V, 190-240V, NEMA 3R
- MPN: T379083S
- UPC: 047503166000
- PPN: HBL-T379083S
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Distribution Transformer - Three Phase, 190/200/208/220/240Δ - 400Y/231V, 15kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimensions
- 9.03 in x 20.3 in x 18.86 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Dry Type Distribution Transformer
- Frequency Rating
- 60 Hz
- Length
- 9.03 in
- Primary Voltage
- 190/200/208/220/240D V
- UL Insulation Class
- 180°C
- Weight
- 300 lb.
- Mounting Type
- Floor
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503166000
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
CSA StandardC22.2 No. 47
kVA15.0
Product CategoryDry Type Distribution Transformer
Secondary Voltage400Y/231 V
Height18.86 in
MountingFloor
Width20.3 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE24.000x15.000x22.000 (in)
Pallet Height24.000 in
Pallet Weight1250.000 lb.
NAICS Code335311
Certifications
- Buy American Compliant
- Contact Manufacturer
