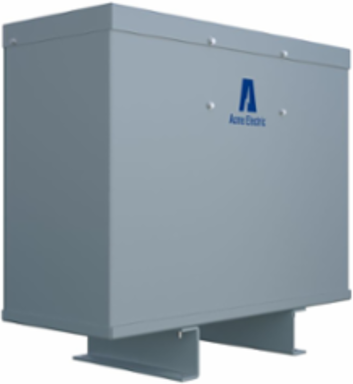

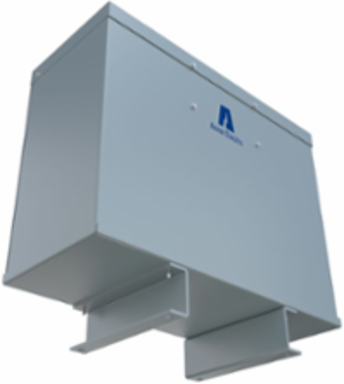

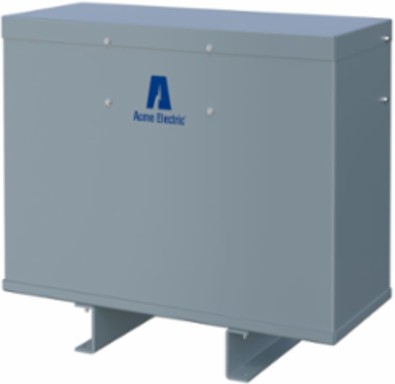

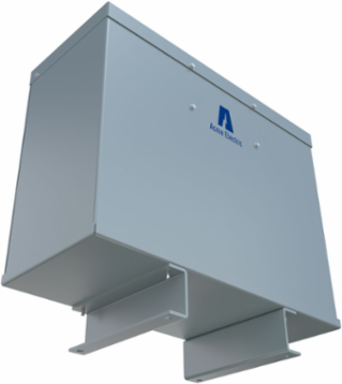

Acme Electric T3793671S Low Voltage Distribution Transformer 15kVA, 208D-480Y/277V, Floor Mount, 245 lb.

MPN: T3793671S
UPC: 047503420119
PPN: HBL-T3793671S
UNSPSC: 39121001

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Low Voltage Distribution Transformer - Three Phase, 208Δ - 480Y/277V, 15kVA

Features

Quiet operation with sound levels below NEMA standards
Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
CSA Standard	C22.2 No. 47
kVA	15.0
Product Category	Dry Type Distribution Transformer
Secondary Voltage	480Y/277 V
Frequency Rating	60 Hz
Length	9.03 in
Primary Voltage	208D V
UL Insulation Class	180°C
Weight	245 lb.
Mounting Type	Floor
ARRA Compliant	Contact Manufacturer
Freight Class Code	06342001
Image Actual Or Representative	A
Sub Class Code	D10D100
Electrostatic Shield	Shielded
Construction	Encapsulated
BOX SIZE	24.000x12.000x24.000 (in)
Pallet Height	29.000 in
Pallet Weight	1010.000 lb.
NAICS Code	335311

BNFC Taps	2
Dimensions	9.03 in x 20.3 in x 18.86 in
Max Temperature Rise	115 Degrees Celsius
Product Type	Dry Type Distribution Transformer
Taps % Steps	5.0%
Height	18.86 in
Mounting	Floor
Width	20.3 in
UL Standard	UL 506
Material type	ZFIN
Nema Rating	NEMA 3R
Class Code	D10
Harmonization Code	8504320000
Stock Indicator	S - Shelf Stock
Buy America(n) Qualified	Contact Manufacturer
Winding Material	AL
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00047503420119
Pallet Length	40.000 in
Pallet Width	40.000 in
