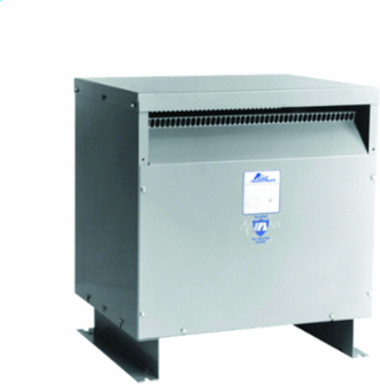

Low Voltage Distribution Transformer 75kVA, 600-120V/240V, Floor Mount, 35.47 Inch Height
Acme Electric

Acme Electric TP531213S Low Voltage Distribution Transformer 75kVA, 600-120V/240V, Floor Mount, 35.47 Inch Height

  • MPN: TP531213S
  • UPC: 047503090169
  • PPN: HBL-TP531213S
  • UNSPSC: 39121001
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Low Voltage Distribution Transformer - Single Phase, 600 - 120V/240V, 75kVA

Features

  • Quiet operation with sound levels below NEMA standards
  • Electrostatic shield for enhanced protection
  • Optional weather shield - WSA3

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico
BNFC Taps
4
Dept of Energy Regulation
Meets or exceed U.S. DOE 10 CFR Part 431
kVA
75.0
Product Category
Dry Type Distribution Transformer
Secondary Voltage
120/240 V
Frequency Rating
60 Hz
Length
26.88 in
Primary Voltage
600 V
UL Insulation Class
220°C
Weight
430 lb.
Mounting Type
Floor
ARRA Compliant
Contact Manufacturer
Freight Class Code
06342001
Image Actual Or Representative
R
Stock Indicator
N - Non-stock
Electrostatic Shield
Shielded
Construction
Ventilated
BOX SIZE
(in)
NAICS Code
335311
ANFC Taps2
CSA StandardC22.2 No. 47
Dimensions26.88 in x 31.9 in x 35.47 in
Max Temperature Rise150 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps2.5%
Height35.47 in
MountingFloor
Width31.9 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 2
Class CodeD10
Harmonization Code8504330040
Replaced Catalog NumberTI531213S
Sub Class CodeD10D100
Winding MaterialAL
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503090169

Certifications

Buy American Compliant
Contact Manufacturer
